matElement

Element functions can be customized with set and show rules.

A matrix.

The elements of a row should be separated by commas, while the rows themselves should be separated by semicolons. The semicolon syntax merges preceding arguments separated by commas into an array. You can also use this special syntax of math function calls to define custom functions that take 2D data.

Content in cells can be aligned with the align parameter, or content in cells that are in the same row can be aligned with the & symbol.

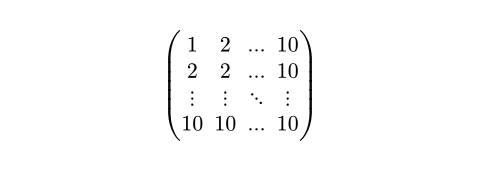

Example

$ mat(
  1, 2, ..., 10;
  2, 2, ..., 10;
  dots.v, dots.v, dots.down, dots.v;
  10, 10, ..., 10;
) $

Parameters

delim

none or str or symbol or array

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

Default: ("(", ")")

The delimiter to use.

Can be a single character specifying the left delimiter, in which case the right delimiter is inferred. Otherwise, can be an array containing a left and a right delimiter.

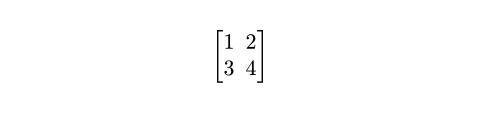

View example

#set math.mat(delim: "[")
$ mat(1, 2; 3, 4) $

align

alignment

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

Default: center

The horizontal alignment that each cell should have.

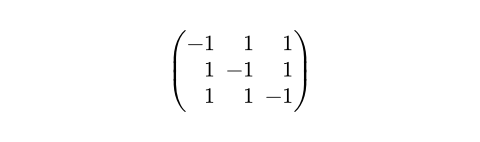

View example

#set math.mat(align: right)
$ mat(-1, 1, 1; 1, -1, 1; 1, 1, -1) $

augment

none or int or dictionary

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

Default: none

Draws augmentation lines in a matrix.

• none: No lines are drawn.
• A single number: A vertical augmentation line is drawn after the specified column number. Negative numbers start from the end.

• A dictionary: With a dictionary, multiple augmentation lines can be drawn both horizontally and vertically. Additionally, the style of the lines can be set. The dictionary can contain the following keys:

  • hline: The offsets at which horizontal lines should be drawn. For example, an offset of 2 would result in a horizontal line being drawn after the second row of the matrix. Accepts either an integer for a single line, or an array of integers for multiple lines. Like for a single number, negative numbers start from the end.
  • vline: The offsets at which vertical lines should be drawn. For example, an offset of 2 would result in a vertical line being drawn after the second column of the matrix. Accepts either an integer for a single line, or an array of integers for multiple lines. Like for a single number, negative numbers start from the end.
  • stroke: How to stroke the line. If set to auto, takes on a thickness of 0.05 em and square line caps.

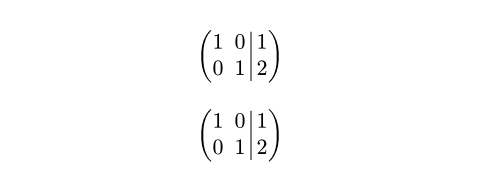

View example: Basic usage

$ mat(1, 0, 1; 0, 1, 2; augment: #2) $
// Equivalent to:
$ mat(1, 0, 1; 0, 1, 2; augment: #(-1)) $

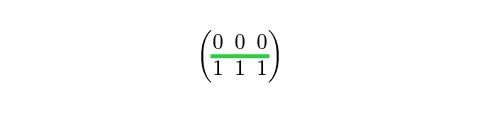

View example: Customizing the augmentation line

$ mat(0, 0, 0; 1, 1, 1; augment: #(hline: 1, stroke: 2pt + green)) $

gap

relative

Default: 0% + 0pt

The gap between rows and columns.

This is a shorthand to set row-gap and column-gap to the same value.

View example

#set math.mat(gap: 1em)
$ mat(1, 2; 3, 4) $

row-gap

relative

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

Default: 0% + 0.2em

The gap between rows.

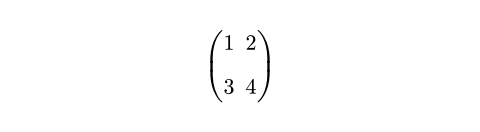

View example

#set math.mat(row-gap: 1em)
$ mat(1, 2; 3, 4) $

column-gap

relative

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

Default: 0% + 0.5em

The gap between columns.

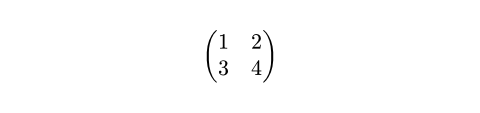

View example

#set math.mat(column-gap: 1em)
$ mat(1, 2; 3, 4) $

rows

array

RequiredPositional

Positional parameters are specified in order, without names.

Variadic

Variadic parameters can be specified multiple times.

An array of arrays with the rows of the matrix.

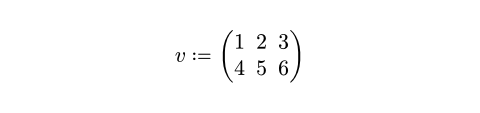

View example

#let data = ((1, 2, 3), (4, 5, 6))
#let matrix = math.mat(..data)
$ v := matrix $
