moveElement

Element functions can be customized with set and show rules.

Moves content without affecting layout.

The move function allows you to move content while the layout still 'sees' it at the original positions. Containers will still be sized as if the content was not moved.

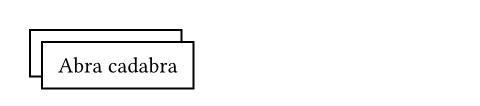

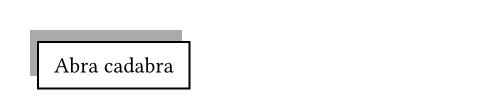

Example

#rect(inset: 0pt, move(
  dx: 6pt, dy: 6pt,
  rect(
    inset: 8pt,
    fill: white,
    stroke: black,
    [Abra cadabra]
  )
))

Parameters

Parameters are the inputs to a function. They are specified in parentheses after the function name.

dx

relative

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

The horizontal displacement of the content.

Default: 0% + 0pt

dy

relative

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

The vertical displacement of the content.

Default: 0% + 0pt

body

content

Required Positional

Positional parameters are specified in order, without names.

The content to move.
