counter
Counts through pages, elements, and more.
With the counter function, you can access and modify counters for pages, headings, figures, and more. Moreover, you can define custom counters for other things you want to count.
Since counters change throughout the course of the document, their current value is contextual. It is recommended to read the chapter on context before continuing here.
Accessing a counter
To access the raw value of a counter, we can use the get
function. This function returns an array: Counters can have multiple levels (in the case of headings for sections, subsections, and so on), and each item in the array corresponds to one level.

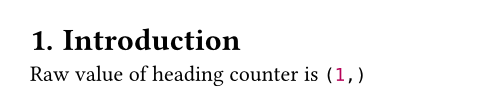

#set heading(numbering: "1.")
= Introduction
Raw value of heading counter is
#context counter(heading).get()
Displaying a counter
Often, we want to display the value of a counter in a more human-readable way. To do that, we can call the display
function on the counter. This function retrieves the current counter value and formats it either with a provided or with an automatically inferred numbering.

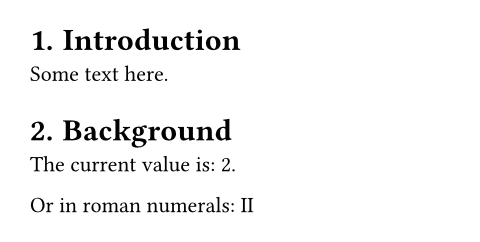

#set heading(numbering: "1.")
= Introduction
Some text here.
= Background
The current value is: #context {
counter(heading).display()
}
Or in roman numerals: #context {
counter(heading).display("I")
}
Modifying a counter
To modify a counter, you can use the step
and update
methods:
-
The
step
method increases the value of the counter by one. Because counters can have multiple levels , it optionally takes alevel
argument. If given, the counter steps at the given depth. -
The
update
method allows you to arbitrarily modify the counter. In its basic form, you give it an integer (or an array for multiple levels). For more flexibility, you can instead also give it a function that receives the current value and returns a new value.
The heading counter is stepped before the heading is displayed, so Analysis
gets the number seven even though the counter is at six after the second update.

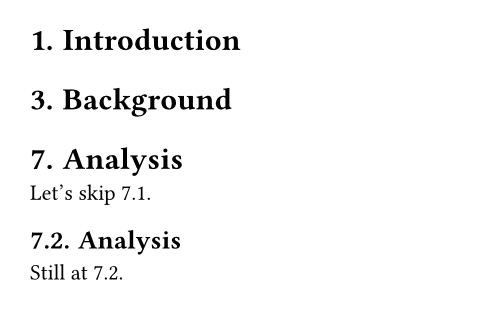

#set heading(numbering: "1.")
= Introduction
#counter(heading).step()
= Background
#counter(heading).update(3)
#counter(heading).update(n => n * 2)
= Analysis
Let's skip 7.1.
#counter(heading).step(level: 2)
== Analysis
Still at #context {
counter(heading).display()
}
Page counter
The page counter is special. It is automatically stepped at each pagebreak. But like other counters, you can also step it manually. For example, you could have Roman page numbers for your preface, then switch to Arabic page numbers for your main content and reset the page counter to one.

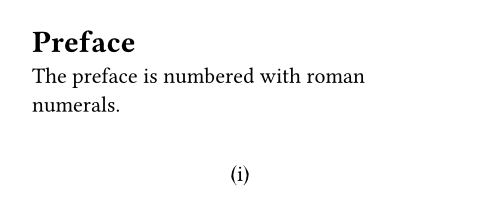

#set page(numbering: "(i)")
= Preface
The preface is numbered with
roman numerals.

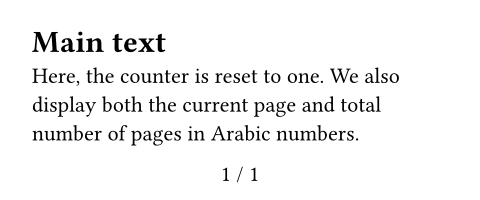

#set page(numbering: "1 / 1")
#counter(page).update(1)
= Main text
Here, the counter is reset to one.
We also display both the current
page and total number of pages in
Arabic numbers.
Custom counters
To define your own counter, call the counter
function with a string as a key. This key identifies the counter globally.

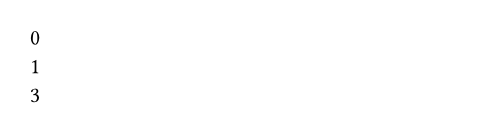

#let mine = counter("mycounter")
#context mine.display() \
#mine.step()
#context mine.display() \
#mine.update(c => c * 3)
#context mine.display()
How to step
When you define and use a custom counter, in general, you should first step the counter and then display it. This way, the stepping behaviour of a counter can depend on the element it is stepped for. If you were writing a counter for, let's say, theorems, your theorem's definition would thus first include the counter step and only then display the counter and the theorem's contents.

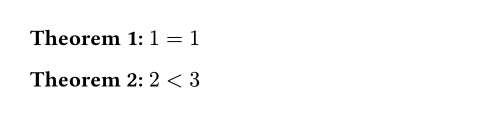

#let c = counter("theorem")
#let theorem(it) = block[
#c.step()
*Theorem #context c.display():*
#it
]
#theorem[$1 = 1$]
#theorem[$2 < 3$]
The rationale behind this is best explained on the example of the heading counter: An update to the heading counter depends on the heading's level. By stepping directly before the heading, we can correctly step from 1
to 1.1
when encountering a level 2 heading. If we were to step after the heading, we wouldn't know what to step to.
Because counters should always be stepped before the elements they count, they always start at zero. This way, they are at one for the first display (which happens after the first step).
Time travel
Counters can travel through time! You can find out the final value of the counter before it is reached and even determine what the value was at any particular location in the document.

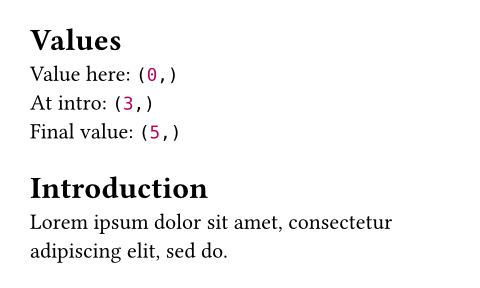

#let mine = counter("mycounter")
= Values
#context [
Value here: #mine.get() \
At intro: #mine.at(<intro>) \
Final value: #mine.final()
]
#mine.update(n => n + 3)
= Introduction <intro>
#lorem(10)
#mine.step()
#mine.step()
Other kinds of state
The counter
type is closely related to state type. Read its documentation for more details on state management in Typst and why it doesn't just use normal variables for counters.
Constructor
Create a new counter identified by a key.
key
The key that identifies this counter.
- If it is a string, creates a custom counter that is only affected by manual updates,
- If it is the
page
function, counts through pages, - If it is a selector, counts through elements that matches with the selector. For example,
- provide an element function: counts elements of that type,
- provide a
<label>
: counts elements with that label.
Definitions
get
Contextual
Retrieves the value of the counter at the current location. Always returns an array of integers, even if the counter has just one number.
This is equivalent to counter.at(here())
.
display
Contextual
Displays the current value of the counter with a numbering and returns the formatted output.
Compatibility: For compatibility with Typst 0.10 and lower, this function also works without an established context. Then, it will create opaque contextual content rather than directly returning the output of the numbering. This behaviour will be removed in a future release.
numbering
A numbering pattern or a function, which specifies how to display the counter. If given a function, that function receives each number of the counter as a separate argument. If the amount of numbers varies, e.g. for the heading argument, you can use an argument sink.
If this is omitted or set to auto
, displays the counter with the numbering style for the counted element or with the pattern "1.1"
if no such style exists.
Default: auto
both
If enabled, displays the current and final top-level count together. Both can be styled through a single numbering pattern. This is used by the page numbering property to display the current and total number of pages when a pattern like "1 / 1"
is given.
Default: false
at
Contextual
Retrieves the value of the counter at the given location. Always returns an array of integers, even if the counter has just one number.
The selector
must match exactly one element in the document. The most useful kinds of selectors for this are labels and locations.
Compatibility: For compatibility with Typst 0.10 and lower, this function also works without a known context if the selector
is a location. This behaviour will be removed in a future release.
selector
The place at which the counter's value should be retrieved.
final
Contextual
Retrieves the value of the counter at the end of the document. Always returns an array of integers, even if the counter has just one number.
location
Compatibility: This argument only exists for compatibility with Typst 0.10 and lower and shouldn't be used anymore.
Default: none
step
Increases the value of the counter by one.
The update will be in effect at the position where the returned content is inserted into the document. If you don't put the output into the document, nothing happens! This would be the case, for example, if you write let _ = counter(page).step()
. Counter updates are always applied in layout order and in that case, Typst wouldn't know when to step the counter.
level
The depth at which to step the counter. Defaults to 1
.
Default: 1
update
Updates the value of the counter.
Just like with step
, the update only occurs if you put the resulting content into the document.
update
If given an integer or array of integers, sets the counter to that value. If given a function, that function receives the previous counter value (with each number as a separate argument) and has to return the new value (integer or array).
