Under/Over

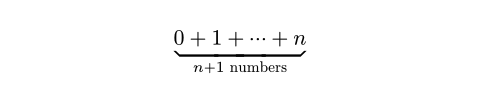

Delimiters above or below parts of an equation.

The braces and brackets further allow you to add an optional annotation below or above themselves.

Functions

underlineElement

Element functions can be customized with set and show rules.

A horizontal line under content.

$ underline(1 + 2 + ... + 5) $

body

content

RequiredPositional

Positional parameters are specified in order, without names.

The content above the line.

overlineElement

Element functions can be customized with set and show rules.

A horizontal line over content.

$ overline(1 + 2 + ... + 5) $

body

content

RequiredPositional

Positional parameters are specified in order, without names.

The content below the line.

underbraceElement

Element functions can be customized with set and show rules.

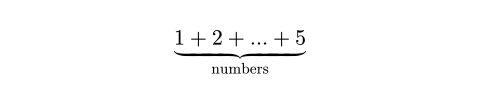

A horizontal brace under content, with an optional annotation below.

$ underbrace(1 + 2 + ... + 5, "numbers") $

body

content

RequiredPositional

Positional parameters are specified in order, without names.

The content above the brace.

annotation

none or content

Positional

Positional parameters are specified in order, without names.

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

The optional content below the brace.

Default: none

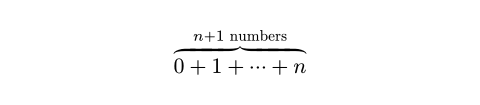

overbraceElement

Element functions can be customized with set and show rules.

A horizontal brace over content, with an optional annotation above.

$ overbrace(1 + 2 + ... + 5, "numbers") $

body

content

RequiredPositional

Positional parameters are specified in order, without names.

The content below the brace.

annotation

none or content

Positional

Positional parameters are specified in order, without names.

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

The optional content above the brace.

Default: none

underbracketElement

Element functions can be customized with set and show rules.

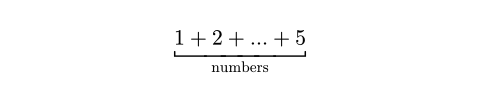

A horizontal bracket under content, with an optional annotation below.

$ underbracket(1 + 2 + ... + 5, "numbers") $

body

content

RequiredPositional

Positional parameters are specified in order, without names.

The content above the bracket.

annotation

none or content

Positional

Positional parameters are specified in order, without names.

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

The optional content below the bracket.

Default: none

overbracketElement

Element functions can be customized with set and show rules.

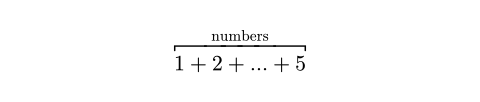

A horizontal bracket over content, with an optional annotation above.

$ overbracket(1 + 2 + ... + 5, "numbers") $

body

content

RequiredPositional

Positional parameters are specified in order, without names.

The content below the bracket.

annotation

none or content

Positional

Positional parameters are specified in order, without names.

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

The optional content above the bracket.

Default: none

underparenElement

Element functions can be customized with set and show rules.

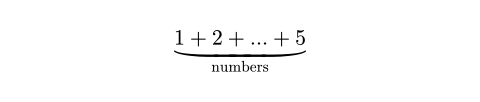

A horizontal parenthesis under content, with an optional annotation below.

$ underparen(1 + 2 + ... + 5, "numbers") $

body

content

RequiredPositional

Positional parameters are specified in order, without names.

The content above the parenthesis.

annotation

none or content

Positional

Positional parameters are specified in order, without names.

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

The optional content below the parenthesis.

Default: none

overparenElement

Element functions can be customized with set and show rules.

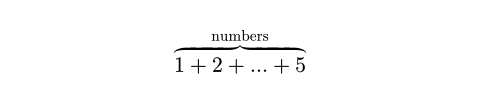

A horizontal parenthesis over content, with an optional annotation above.

$ overparen(1 + 2 + ... + 5, "numbers") $

body

content

RequiredPositional

Positional parameters are specified in order, without names.

The content below the parenthesis.

annotation

none or content

Positional

Positional parameters are specified in order, without names.

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

The optional content above the parenthesis.

Default: none

undershellElement

Element functions can be customized with set and show rules.

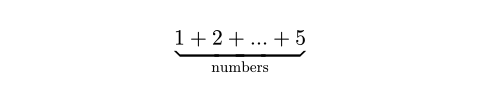

A horizontal tortoise shell bracket under content, with an optional annotation below.

$ undershell(1 + 2 + ... + 5, "numbers") $

body

content

RequiredPositional

Positional parameters are specified in order, without names.

The content above the tortoise shell bracket.

annotation

none or content

Positional

Positional parameters are specified in order, without names.

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

The optional content below the tortoise shell bracket.

Default: none

overshellElement

Element functions can be customized with set and show rules.

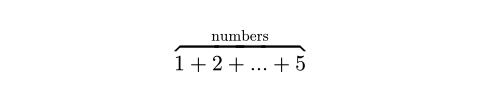

A horizontal tortoise shell bracket over content, with an optional annotation above.

$ overshell(1 + 2 + ... + 5, "numbers") $

body

content

RequiredPositional

Positional parameters are specified in order, without names.

The content below the tortoise shell bracket.

annotation

none or content

Positional

Positional parameters are specified in order, without names.

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

The optional content above the tortoise shell bracket.

Default: none
