vec
ElementElement functions can be customized with set
and show
rules.
Element functions can be customized with
set
and show
rules.A column vector.

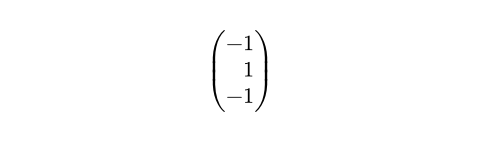

Content in the vector's elements can be aligned with the &
symbol.
Example

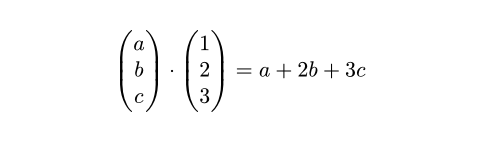

$ vec(a, b, c) dot vec(1, 2, 3)
= a + 2b + 3c $

ParametersParameters are the inputs to a function. They are specified in parentheses after the function name.
Parameters are the inputs to a function. They are specified in parentheses after the function name.

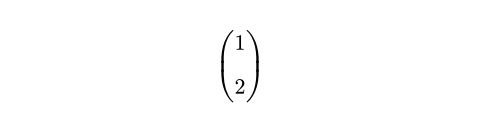

delim
none or strSettableSettable parameters can be customized for all following uses of the function with a set
rule.
none or str
SettableSettable parameters can be customized for all following uses of the function with a
set
rule.The delimiter to use.
Variant | Details |
---|---|
"(" | Delimit with parentheses. |
"[" | Delimit with brackets. |
"{" | Delimit with curly braces. |
"|" | Delimit with vertical bars. |
"||" | Delimit with double vertical bars. |
Default: "("
View example

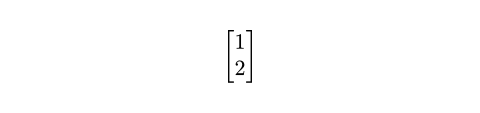

#set math.vec(delim: "[")
$ vec(1, 2) $

gap
SettableSettable parameters can be customized for all following uses of the function with a set
rule.
Settable parameters can be customized for all following uses of the function with a
set
rule.The gap between elements.
Default: 0.5em
View example
#set math.vec(gap: 1em)
$ vec(1, 2) $

children
RequiredPositionalPositional parameters are specified in order, without names.VariadicVariadic parameters can be specified multiple times.
Positional parameters are specified in order, without names.
Variadic parameters can be specified multiple times.
The elements of the vector.
