Documentation

# length

A size or distance, possibly expressed with contextual units.

Typst supports the following length units:

• Points: 72pt
• Millimeters: 254mm
• Centimeters: 2.54cm
• Inches: 1in
• Relative to font size: 2.5em

You can multiply lengths with and divide them by integers and floats.

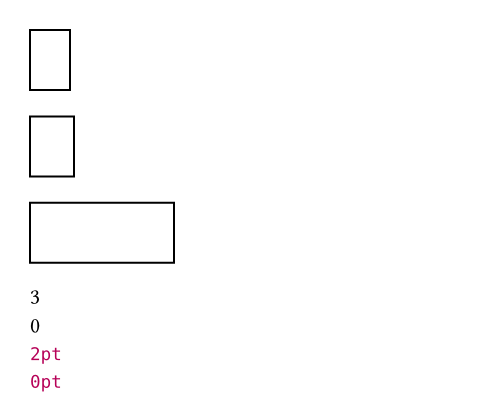

## Example

#rect(width: 20pt)
#rect(width: 2em)
#rect(width: 1in)

#(3em + 5pt).em \
#(20pt).em \
#(40em + 2pt).abs \
#(5em).abs

## Fields

• abs: A length with just the absolute component of the current length (that is, excluding the em component).
• em: The amount of em units in this length, as a float.

## DefinitionsQuestion markFunctions and types and can have associated definitions. These are accessed by specifying the function or type, followed by a period, and then the definition's name.

### pt

Converts this length to points.

Fails with an error if this length has non-zero em units (such as 5em + 2pt instead of just 2pt). Use the abs field (such as in (5em + 2pt).abs.pt()) to ignore the em component of the length (thus converting only its absolute component).

self.pt(
) -> float

### mm

Converts this length to millimeters.

Fails with an error if this length has non-zero em units. See the pt method for more details.

self.mm(
) -> float

### cm

Converts this length to centimeters.

Fails with an error if this length has non-zero em units. See the pt method for more details.

self.cm(
) -> float

### inches

Converts this length to inches.

Fails with an error if this length has non-zero em units. See the pt method for more details.

self.inches(
) -> float

### to-absolute

Resolve this length to an absolute length.

self.to-absolute(
) -> length

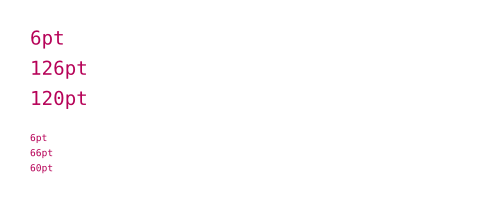

#set text(size: 12pt)
#context [
#(6pt).to-absolute() \
#(6pt + 10em).to-absolute() \
#(10em).to-absolute()
]

#set text(size: 6pt)
#context [
#(6pt).to-absolute() \
#(6pt + 10em).to-absolute() \
#(10em).to-absolute()
]
