• Rectangle

rectElement

Element functions can be customized with set and show rules.

A rectangle with optional content.

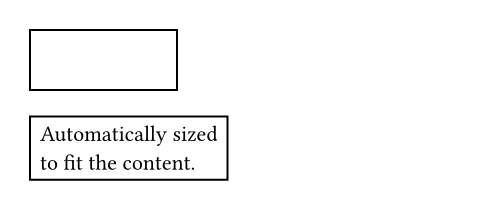

Example

// Without content.
#rect(width: 35%, height: 30pt)

// With content.
#rect[
  Automatically sized \
  to fit the content.
]

Parameters

Parameters are the inputs to a function. They are specified in parentheses after the function name.

width

auto or relative

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

The rectangle's width, relative to its parent container.

Default: auto

height

auto or relative or fraction

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

The rectangle's height, relative to its parent container.

Default: auto

fill

none or color or gradient or tiling

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

How to fill the rectangle.

When setting a fill, the default stroke disappears. To create a rectangle with both fill and stroke, you have to configure both.

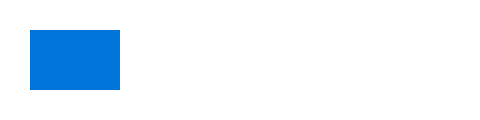

View example

#rect(fill: blue)

Default: none

stroke

none or auto or length or color or gradient or stroke or tiling or dictionary

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

How to stroke the rectangle. This can be:

• none to disable stroking

• auto for a stroke of 1pt + black if and only if no fill is given.

• Any kind of stroke

• A dictionary describing the stroke for each side individually. The dictionary can contain the following keys in order of precedence:

  • top: The top stroke.
  • right: The right stroke.
  • bottom: The bottom stroke.
  • left: The left stroke.
  • x: The horizontal stroke.
  • y: The vertical stroke.
  • rest: The stroke on all sides except those for which the dictionary explicitly sets a size.

  All keys are optional; omitted keys will use their previously set value, or the default stroke if never set.

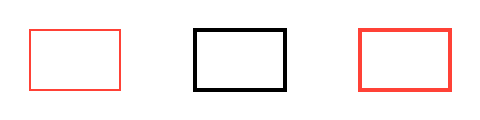

View example

#stack(
  dir: ltr,
  spacing: 1fr,
  rect(stroke: red),
  rect(stroke: 2pt),
  rect(stroke: 2pt + red),
)

Default: auto

radius

relative or dictionary

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

How much to round the rectangle's corners, relative to the minimum of the width and height divided by two. This can be:

• A relative length for a uniform corner radius.

• A dictionary: With a dictionary, the stroke for each side can be set individually. The dictionary can contain the following keys in order of precedence:

  • top-left: The top-left corner radius.
  • top-right: The top-right corner radius.
  • bottom-right: The bottom-right corner radius.
  • bottom-left: The bottom-left corner radius.
  • left: The top-left and bottom-left corner radii.
  • top: The top-left and top-right corner radii.
  • right: The top-right and bottom-right corner radii.
  • bottom: The bottom-left and bottom-right corner radii.
  • rest: The radii for all corners except those for which the dictionary explicitly sets a size.

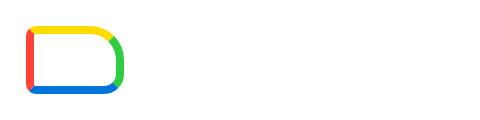

View example

#set rect(stroke: 4pt)
#rect(
  radius: (
    left: 5pt,
    top-right: 20pt,
    bottom-right: 10pt,
  ),
  stroke: (
    left: red,
    top: yellow,
    right: green,
    bottom: blue,
  ),
)

Default: (:)

inset

relative or dictionary

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

How much to pad the rectangle's content. See the box's documentation for more details.

Default: 0% + 5pt

outset

relative or dictionary

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

How much to expand the rectangle's size without affecting the layout. See the box's documentation for more details.

Default: (:)

body

none or content

Positional

Positional parameters are specified in order, without names.

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

The content to place into the rectangle.

When this is omitted, the rectangle takes on a default size of at most 45pt by 30pt.

Default: none
