Universe

Create project in app

Version on Typst Universe Manual (PDF) Minimum Typst version Touying version: 0.7.4 License: MIT and MIT-0 Skill for Claude Code

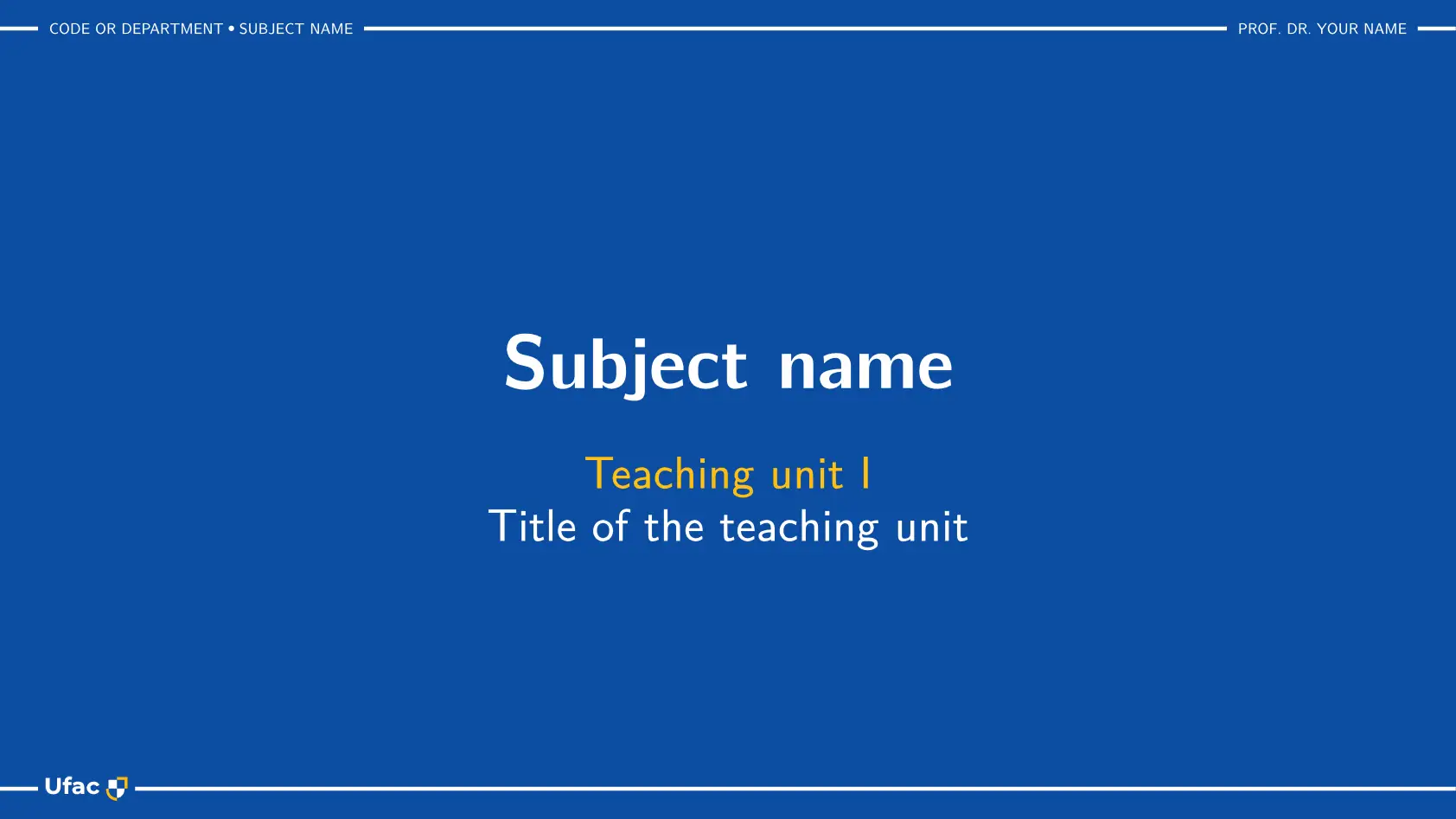

The covers of a lecture, the work of students for a course and a thesis defense

Slides for the Federal University of Acre (UFAC), Brazil, in Typst with Touying. For lectures and academic presentations, from coursework to thesis defenses.

Manual (PDF) · Example decks · Skill for AI agents · Changelog

Start

typst init @preview/touying-ufac-unofficial:0.3.0

This creates a deck from the template. In the new folder, typst watch main.typ compiles it. The theme needs the font New Computer Modern Sans, which Typst does not bundle: see Install the font in the manual.

// Starting deck for the touying-ufac-unofficial theme. Syntax: the manual, docs/manual.pdf; whole decks: example/ (a
// lecture, coursework, a thesis defense), both at https://github.com/lucaslrodri/touying-ufac-unofficial/tree/v0.3.0
#import "@preview/touying:0.7.4": *
#import "@preview/touying-ufac-unofficial:0.3.0": *

#show: ufac-theme.with(
  aspect-ratio: "16-9",
  lang: "en",   // "pt-br" (default), "en" or "es"
  config-info(
    flavor: "lecture",   // or "coursework", "tcc", "dissertation", "thesis": start from example/coursework.typ, tcc.typ
    subject: [Subject name],                  // or Touying's `title:`
    subject-code: [CODE or Department],       // or `short-title:`
    unit-title: [Title of the teaching unit], // or `subtitle:`
    unit: [Teaching unit I],                  // or `short-subtitle:`
    author: [Prof. Dr. Your Name],
    // counter-prefix: [2.],   // "Exercise 2.N" in the second unit; the flavor "lecture" gives [1.]
  ),
)

#title-slide()

== Slide title
=== Subtitle

Text.

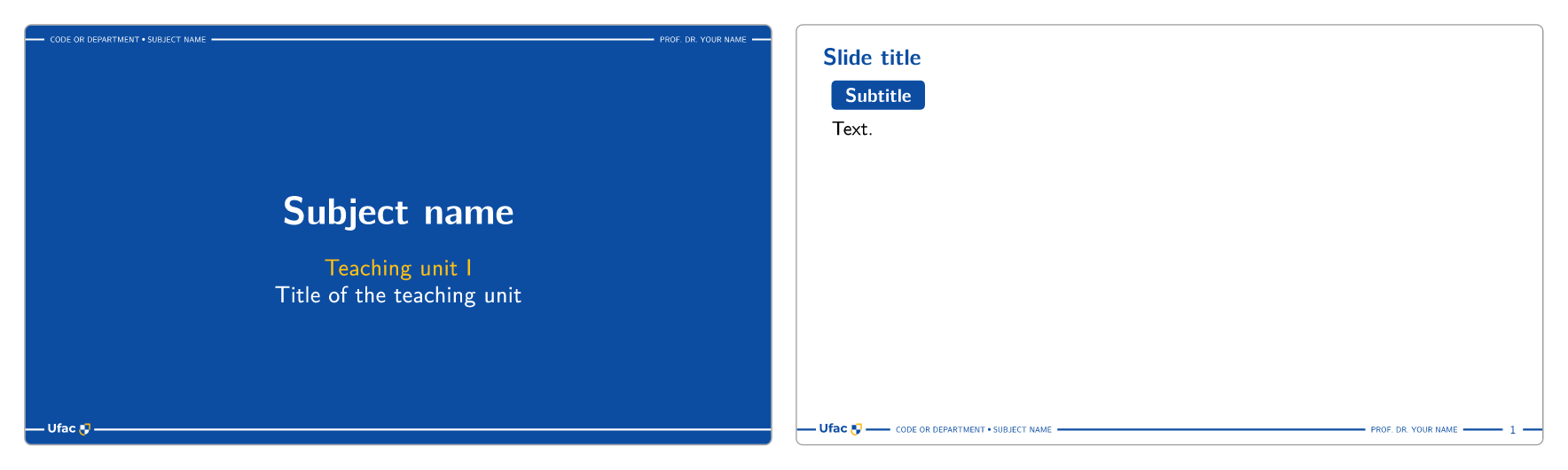

The 2 pages of template/main.typ

Choose a flavor

flavor in config-info sets where the authors go on the cover, the tag on the cover of a thesis defense and the numbering of the exercises and examples, unless the deck sets them itself.

flavor For
"lecture" (default) a lecture of a course
"coursework" the work of students for a course
"tcc", "dissertation", "thesis" the defense of an undergraduate thesis, a master’s dissertation or a doctoral thesis

Choose a cover style

cover-style in ufac-theme sets the background of the cover and of the closing slide.

"bubbles" (default) "gradient" "plain"
The cover with the cover style bubbles The cover with the cover style gradient The cover with the cover style plain

Elements

Headings make the slides, and a few Markdown-like shorthands make arrow lists, emphases, boxes and quotes. Every detail is in the manual.

Preview Element
A slide with a subtitle, arrows, a box and a tip Slides. == opens a slide and === adds a subtitle. --- goes on to a new page. -> at the start of a paragraph makes a list with arrows.
A section slide with a figure on the right Sections. = Title opens a section slide; an image after it goes on the right.
An exercise with its answer Exercises and examples. == Title <exercise> or <example>, numbered. #answer (in an exercise) or #solution (in an example) opens the answer or the solution; #answer(sep: ":") writes “Answer:”.
Arrows with bold, italic, alert, highlight and underline Emphasis. *bold*, _italic_, ~~alert~~, ==highlight== and ~underline~. The last three take plain text only; for markup inside, use #alert[..], #highlight[..] and #underline[..].
A box, a quotation and an equation box Boxes. > text makes a box and > $ .. $ an equation box. "A quotation." alone in a paragraph is a quote.
Callouts: caution, tip, reminder (#remark), note, example and examples Callouts. #caution, #tip, #remark (Reminder), #note, #example and #examples.
A table with a blue header Tables. The header row is blue; in a cell with table.cell(fill: colors.secondary-lighter), the bold text takes a darker tone of the fill.
Python code and its output Code. A fenced python, typst, matlab, bash or sh block shows its language; a text block is the output.
The closing slide Closing slide. #ending-slide[Thank you!][Subtitle][Body].

Examples

Three example decks:

Preview Deck
The cover and an example with its solution of the lecture deck lecture (PDF): a lecture with an outline, step-by-step reveals, exercises and code.
The cover and an example with a formula of the coursework deck coursework (PDF): the work of students, with the students and the teacher under their labels on the cover.
The cover and the slide of the problem of the tcc deck tcc (PDF): the defense of an undergraduate thesis.
Show the code of example/lecture.typ
// Example deck of the touying-ufac-unofficial theme: a lecture of a course, with the aliases of a course (`subject`,
// `subject-code`, `unit`, `unit-title`, `semester`) and the prefix of its unit (`counter-prefix`), a slide revealed
// step by step, exercises and examples with their solutions, callouts and the closing slide.
#import "@preview/touying:0.7.4": *
#import "@preview/touying-ufac-unofficial:0.3.0": *

#show: ufac-theme.with(
  lang: "en",
  config-info(
    flavor: "lecture",
    subject: [Introductory Astronomy],
    subject-code: [AST101],
    unit: [Unit II],
    unit-title: [The solar system],
    semester: [2026.2],
    author: [Prof. Dr. Your Name],
    counter-prefix: [2.],   // the second unit: "Exercise 2.1"
  ),
)

#title-slide()

== Contents
#outline()

= The planets

== Orbits
=== Kepler's laws
-> The planets move on ellipses, with the Sun at a focus
-> A planet sweeps equal areas in equal times
-> The square of the period grows with the cube of the orbit

> == Definition
> An astronomical unit (au) is the mean distance from the Earth to the Sun, about $1.5 times 10^8$ km.

#tip[In years and astronomical units, Kepler's third law is just $T^2 = a^3$.]

// Touying's animations: a `#pause` in a paragraph of its own between two lines, then `#uncover(3)` around a box,
// which shows on the third step
== One step at a time
-> The orbit of a planet is an ellipse

#pause

-> The Sun sits at one of its foci

#uncover(3)[
  #emph-box(title: [Kepler's first law])[The planets move on ellipses, with the Sun at one focus.]
]

== The period of Mars <example>
Mars orbits the Sun at $a = 1.52$ au. How long is its year?

#pause
#solution
From $T^2 = a^3$:

$ T = sqrt(1.52^3) approx 1.87 "years" $

== Jupiter and Saturn <exercise>
Find the period of:

+ Jupiter, at $5.2$ au
+ Saturn, at $9.5$ au
+ an asteroid at $2.8$ au

#answer
About $11.9$, $29.3$ and $4.7$ years.

= On the computer

== The periods in Python
```python
planets = {"Mercury": 0.39, "Earth": 1.00, "Mars": 1.52}

for name, a in planets.items():
    print(name, round(a ** 1.5, 2))
```
```text
Mercury 0.24
Earth 1.0
Mars 1.87
```

#tip[`a ** 1.5` is the same as `sqrt(a ** 3)`.]

#ending-slide[Thank you!][Next lecture: the Moon][Read chapter 3 of the book.]
Show the code of example/coursework.typ
// Example deck of the touying-ufac-unofficial theme: the work of students for a course (`flavor: "coursework"`), with
// the students and the teacher under their labels on the cover (the layout "stack" of the flavor) and `#info`.
#import "@preview/touying:0.7.4": *
#import "@preview/touying-ufac-unofficial:0.3.0": *

#show: ufac-theme.with(
  lang: "en",
  config-info(
    flavor: "coursework",
    subject: [Applied Statistics],
    subject-code: [STA210],
    unit-title: [How long does it take to get to class?],
    author: [_Students_ \ First Student, Second Student \ _Teacher_ \ Prof. Dr. Teacher Name],
    year: 2026,
  ),
)

#title-slide()

== The survey
#cols(columns: (3fr, 2fr))[
  -> 40 students answered a short form
  -> Each one gave the time from home to class
  -> On foot, by bike, by bus or by car

  The mean is #eq-box[$overline(x) = 1/n sum_i x_i$].
][
  #emph-box(title: [Course])[
    #info("subject") (#info("subject-code")), #info("year").
  ]
]

== The spread <example>
Five students took 10, 15, 20, 25 and 30 minutes. Find the mean and the standard deviation.

#solution
$ overline(x) = 20 "min", quad s = sqrt((100 + 25 + 0 + 25 + 100) / 4) approx 7.9 "min" $

#caution[The sample standard deviation divides by $n - 1$, not by $n$.]

#ending-slide()
Show the code of example/tcc.typ
// Example deck of the touying-ufac-unofficial theme: the defense of an undergraduate thesis (`flavor: "tcc"`), with
// the student and the advisors under their labels, the cover style "gradient" and the tag of the work on the cover.
#import "@preview/touying:0.7.4": *
#import "@preview/touying-ufac-unofficial:0.3.0": *

#show: ufac-theme.with(
  lang: "en",
  cover-style: "gradient",
  config-info(
    flavor: "tcc",
    title: [Recognizing bird songs in city parks],
    course: [Bachelor's in Biology],
    author: [_Student_ \ Student Name \ _Advisor_ \ Prof. Dr. Advisor Name \ _Co-advisor_ \ Prof. Dr. Co-advisor Name],
    date: [December 2026],
    contact: [`student.name@example.com`],
  ),
)

#title-slide()

= Introduction

== The problem
-> City parks are full of birds, heard more often than seen
-> Telling the songs apart by ear takes years of practice
-> A phone can record them, and a program can name the species

#cols(divider: true)[
  #tag[goal]

  Name the species from a short recording.
][
  #tag(color: colors.quaternary)[result]

  A classifier evaluated on 300 recordings.
]

= Method

== The recordings
#table(columns: 3, table.header([Set], [Recordings], [Accuracy]),
  [Training], [1200], [--],
  [Validation], [300], [0.88],
  [Test], [300], [0.86],
)

#note[The accuracy is the share of recordings named right (0 to 1).]

= Conclusion

== Contributions
- A set of 1800 labeled recordings of 25 species
- A classifier with an accuracy of 0.86 on the test set
- The code, open

#ending-slide[Thank you!][Questions?][#info("contact")]

License

The theme is MIT. The template is MIT-0: a deck made from it needs no attribution.

The icons in assets/icons/ come from Octicons (© GitHub Inc., MIT License), Phosphor (MIT License), Devicon (MIT License), Simple Icons (CC0), Material Icon Theme (MIT License) and VSCode Icons (MIT License), in Iconify format.

The UFAC logo (assets/ufac-logo.svg) belongs to the Federal University of Acre. This theme is unofficial: the university does not endorse it.
