Universe

Draw Bloch spheres using cetz in Typst.

Usage

The bloch-from-spherical function plots a single state vector at the given spherical coordinates.

#import "@preview/tybloch:0.1.0": bloch-from-spherical

#bloch-from-spherical(
    45deg,
    45deg,
    state-color: purple,
    show-projections: true,
)

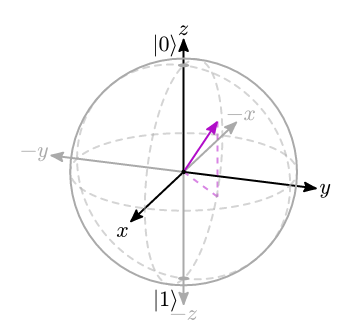

Example of the output of the bloch-from-spherical function

The bloch-state-linear-evolution functions shows the evolution between an initial state vector and a final state vector.

#import "@preview/tybloch:0.1.0": bloch-state-linear-evolution

#bloch-state-linear-evolution(
    (1, 0deg, 0deg),
    (1, 90deg, 90deg),
    number-of-shadows: 9,
    state-color: purple,
)

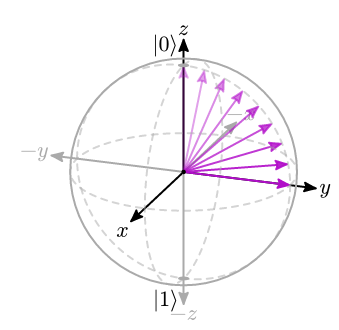

Example of the output of the bloch-state-linear-evolution function

The bloch-state-rotation-evolution functions shows the evolution for an initial state vector rotating around a given rotation axis for a total rotation angle.

#import "@preview/tybloch:0.1.0": bloch-state-rotation-evolution

#bloch-state-rotation-evolution(
  (1, 25deg, 90deg),
  (0deg, 0deg),
  360deg,
  number-of-shadows: 11,
)

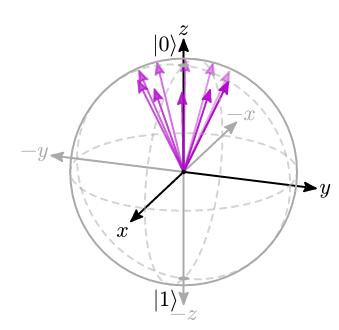

Example of the output of the bloch-state-evolution function

Changelog

0.1.0

Initial release
