Mind maps for Typst, built on CeTZ, that lay themselves out. You write the tree; tidymind measures every label and places each branch so nothing overlaps.

Why tidymind

• No overlap at any depth. Every node is measured before the layout runs, so a label that wraps gets the room it needs.
• Five styles: boxed, outline, technical, bar and block.
• Three edges: curved, straight, or tapered ribbons that thin toward the leaves.
• One side or two: grow the map to the right, to the left, or both ways, balanced by size.
• Roles by name: mark a node as a warning, a definition or an example, and get a tag or a color.
• Labels that read like labels: any Typst content, never hyphenated or justified by the surrounding document.

What’s new in 0.3.0

• Three new styles: technical, bar and block.
• edge: "straight" and edge: "tapered", besides the curved edge.
• direction: "left" and direction: "both"; align-levels lines up each depth in one column.
• surface turns nodes into tinted cards; markers: "role" tags a node’s role instead of recoloring it.
• Four levels with their own look (root, branch, point, detail).
• A new default palette, “Slate”: six muted colors that read well on white.
• A label ignores the document’s justification and hyphenation: inside a justified, hyphenated document it used to split words and open gaps.

Usage

#import "@preview/tidymind:0.3.0": mindmap, node

#mindmap(node([Root],
  node([Branch A], node([A1]), node([A2])),
  node([Branch B]),
))

node(content, ..children) builds a tree node; content is the label and the remaining positional arguments are its children (each one another node(...) or raw content). A raw dictionary (content: .., children: (..)) is also accepted.

Long labels

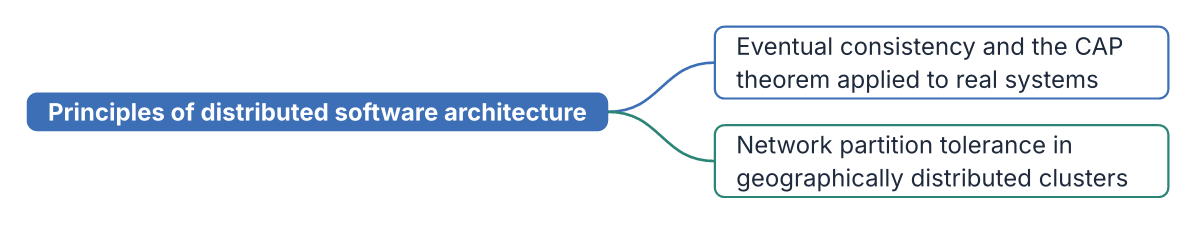

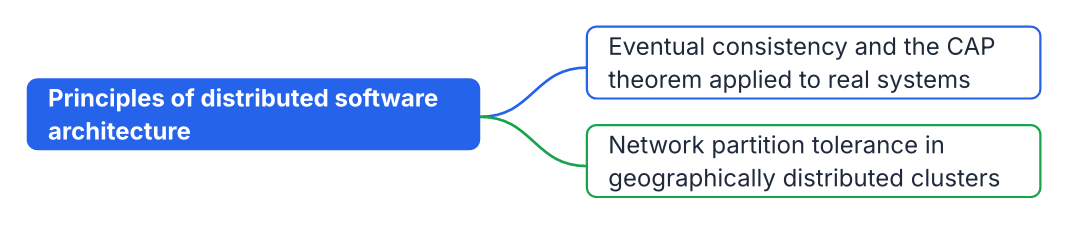

This is the case that pushed the package into existence. Node sizes come from Typst’s measure, so a label that wraps reserves the vertical band it actually needs, at any depth, with no manual offsets.

Styles

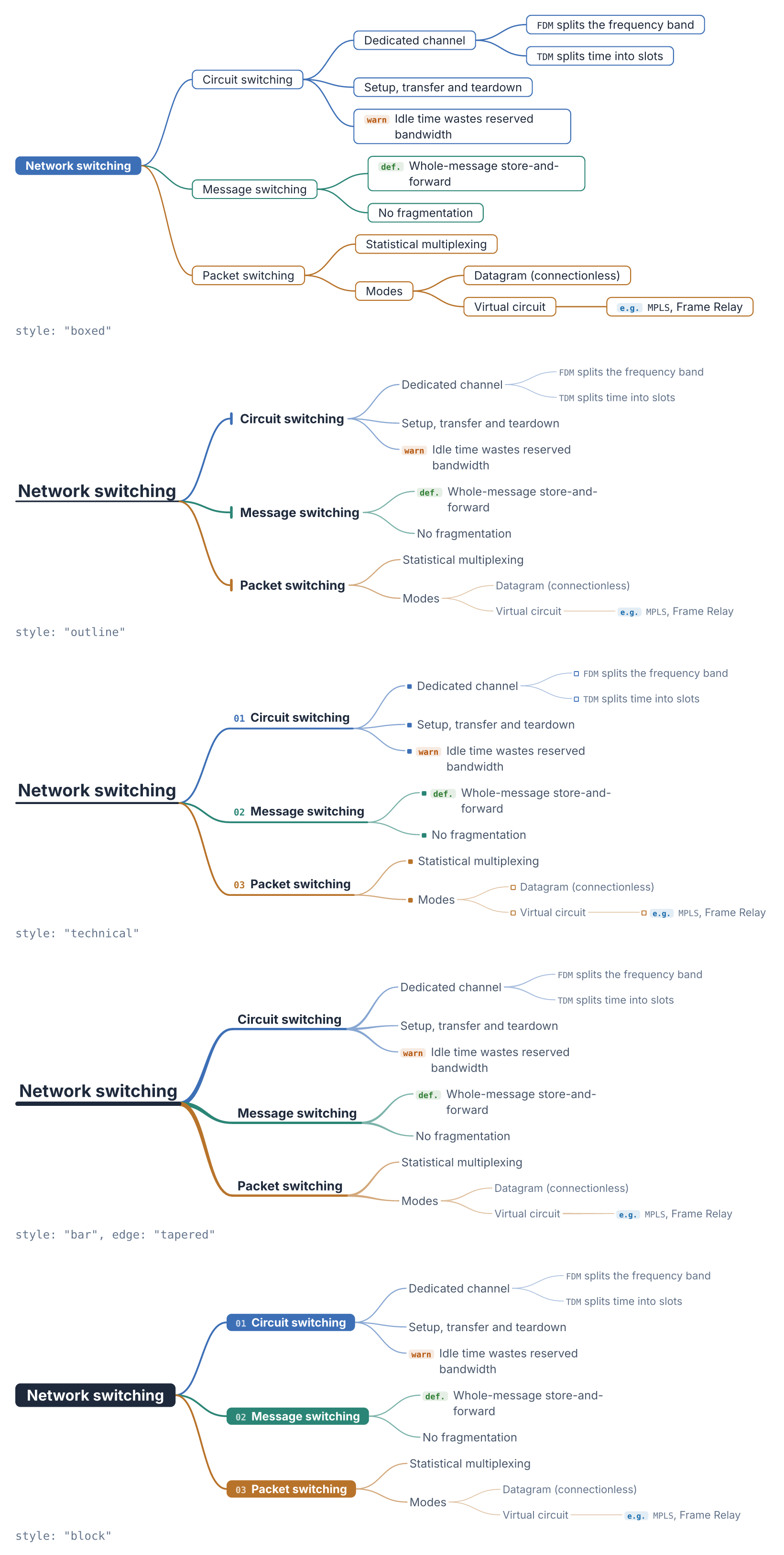

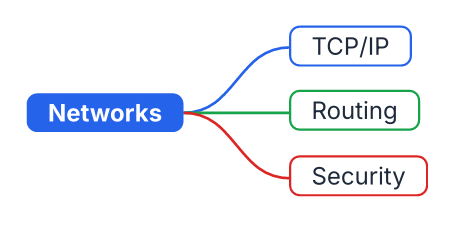

style: "boxed" (the default) draws every node as a rounded box, the root filled with its branch color.

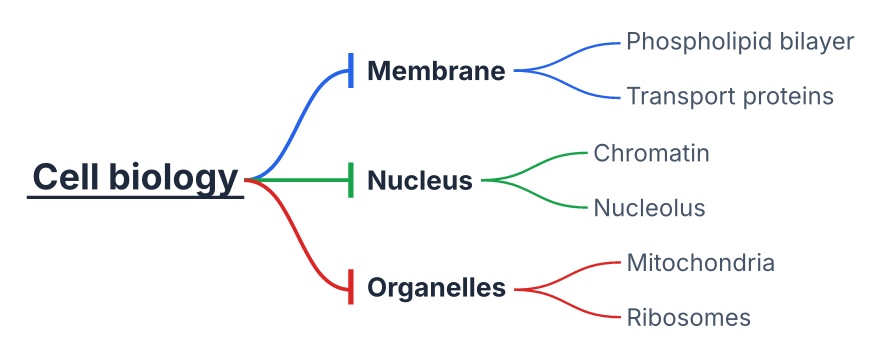

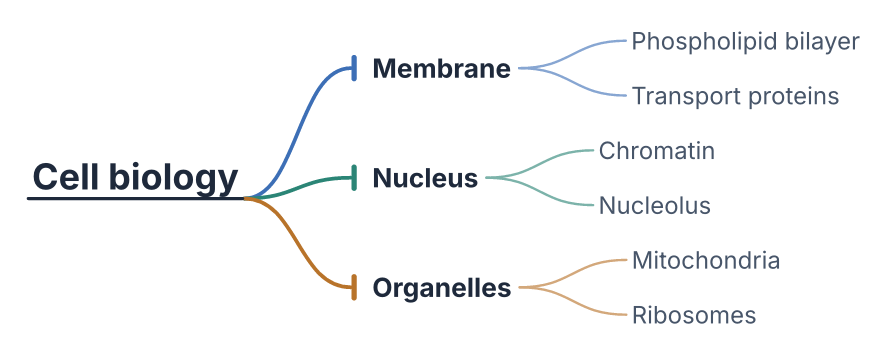

style: "outline" drops the boxes entirely: the root becomes a heading over a baseline rule, each first-level branch a label beside a rounded capsule in its own color, and everything deeper is plain text. Hierarchy comes from size, weight and color instead of from frames, which helps when the map sits inside a document and boxes would fight with the surrounding text.

Technical, bar and block

Three more styles build on the same tree. The examples below all draw this one:

#let switching = node([Network switching],
  node([Circuit switching],
    node([Dedicated channel],
      node([`FDM` splits the frequency band]),
      node([`TDM` splits time into slots]),
    ),
    node([Setup, transfer and teardown]),
    node([Idle time wastes reserved bandwidth], emphasis: "warning"),
  ),
  node([Message switching],
    node([Whole-message store-and-forward], emphasis: "definition"),
    node([No fragmentation]),
  ),
  node([Packet switching],
    node([Statistical multiplexing]),
    node([Modes],
      node([Datagram (connectionless)]),
      node([Virtual circuit], node([`MPLS`, Frame Relay], emphasis: "example")),
    ),
  ),
)

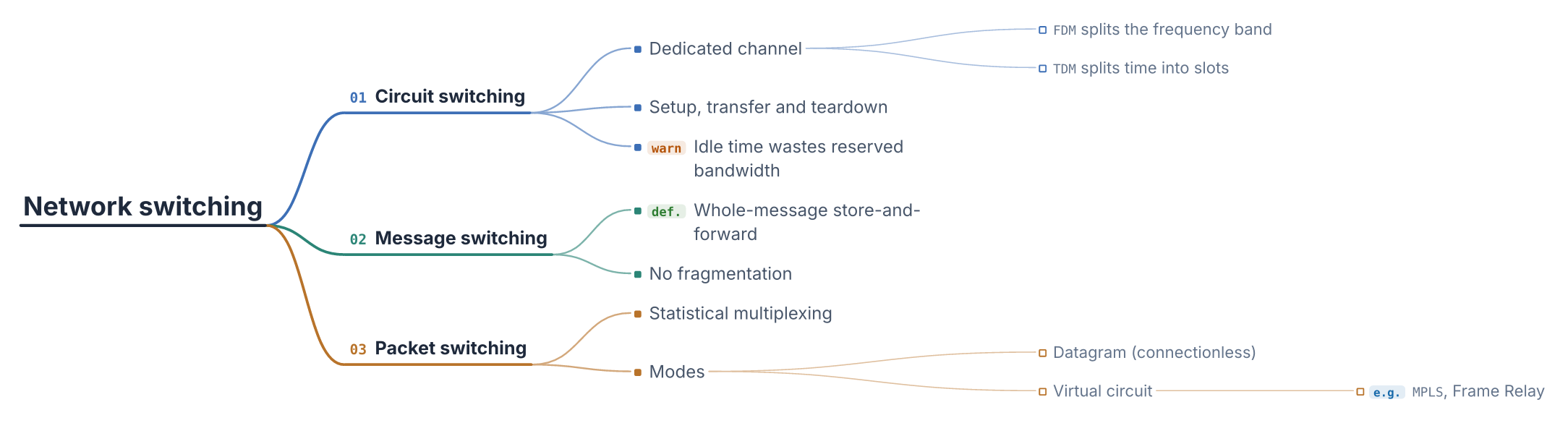

style: "technical" reads like a spec sheet: the root and each first-level branch sit on a rule that the edge runs into, branches are numbered, and points get a small square marker. Here with role tags and align-levels:

#mindmap(switching, style: "technical", markers: "role", align-levels: true)

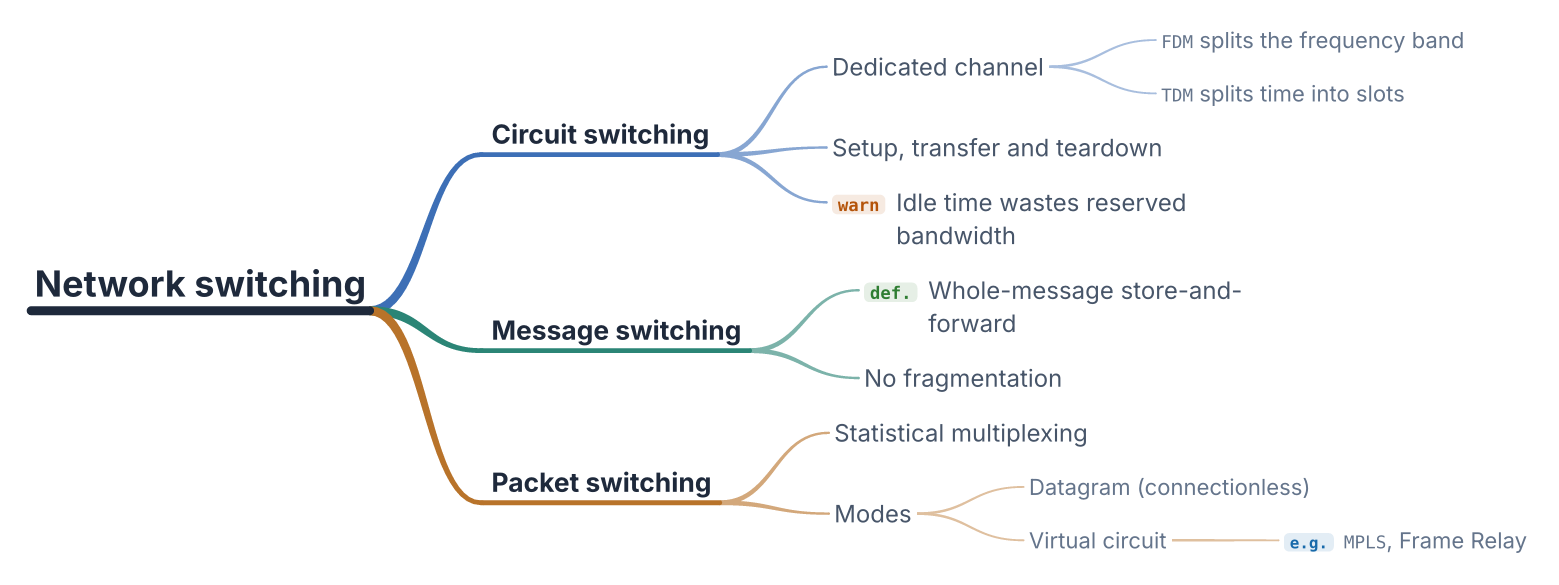

style: "bar" draws the root and the branches over rules, and pairs with the tapered edge, which runs from the root’s rule into each branch’s and thins toward the leaves.

#mindmap(switching, style: "bar", edge: "tapered", markers: "role")

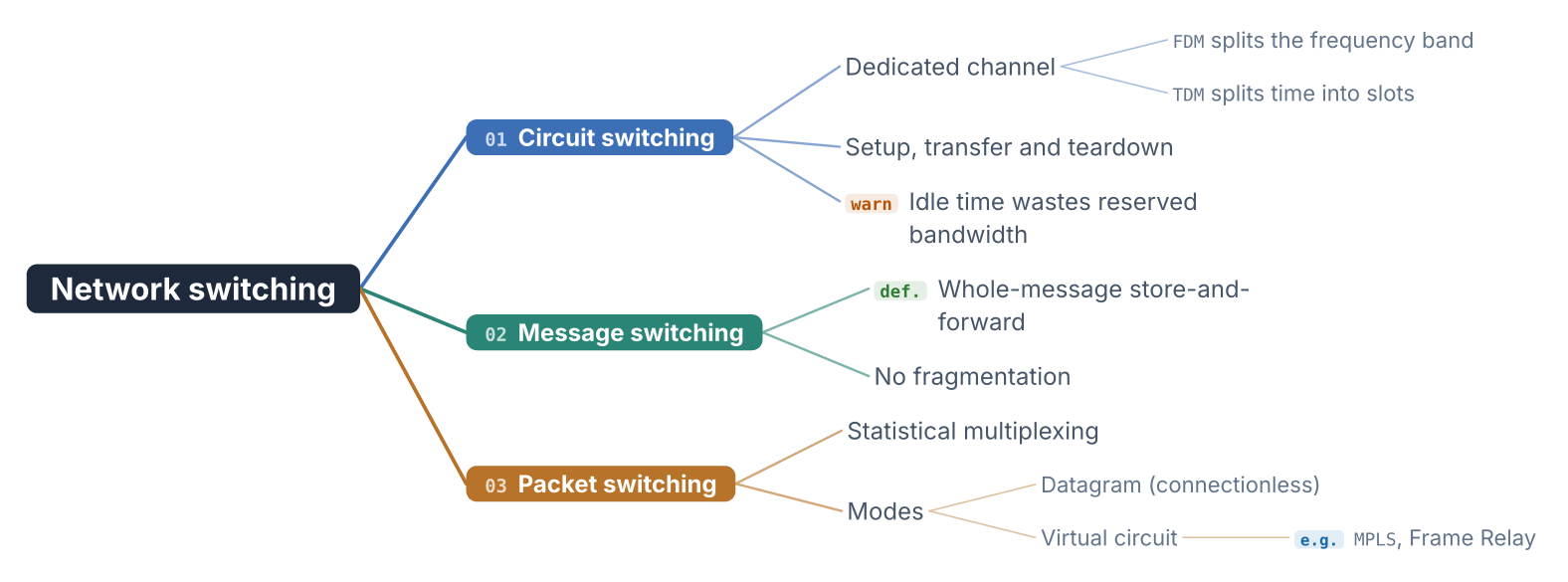

style: "block" fills the root and the first-level branches, numbered, and leaves everything deeper as plain text.

#mindmap(switching, style: "block", edge: "straight", markers: "role")

Edges

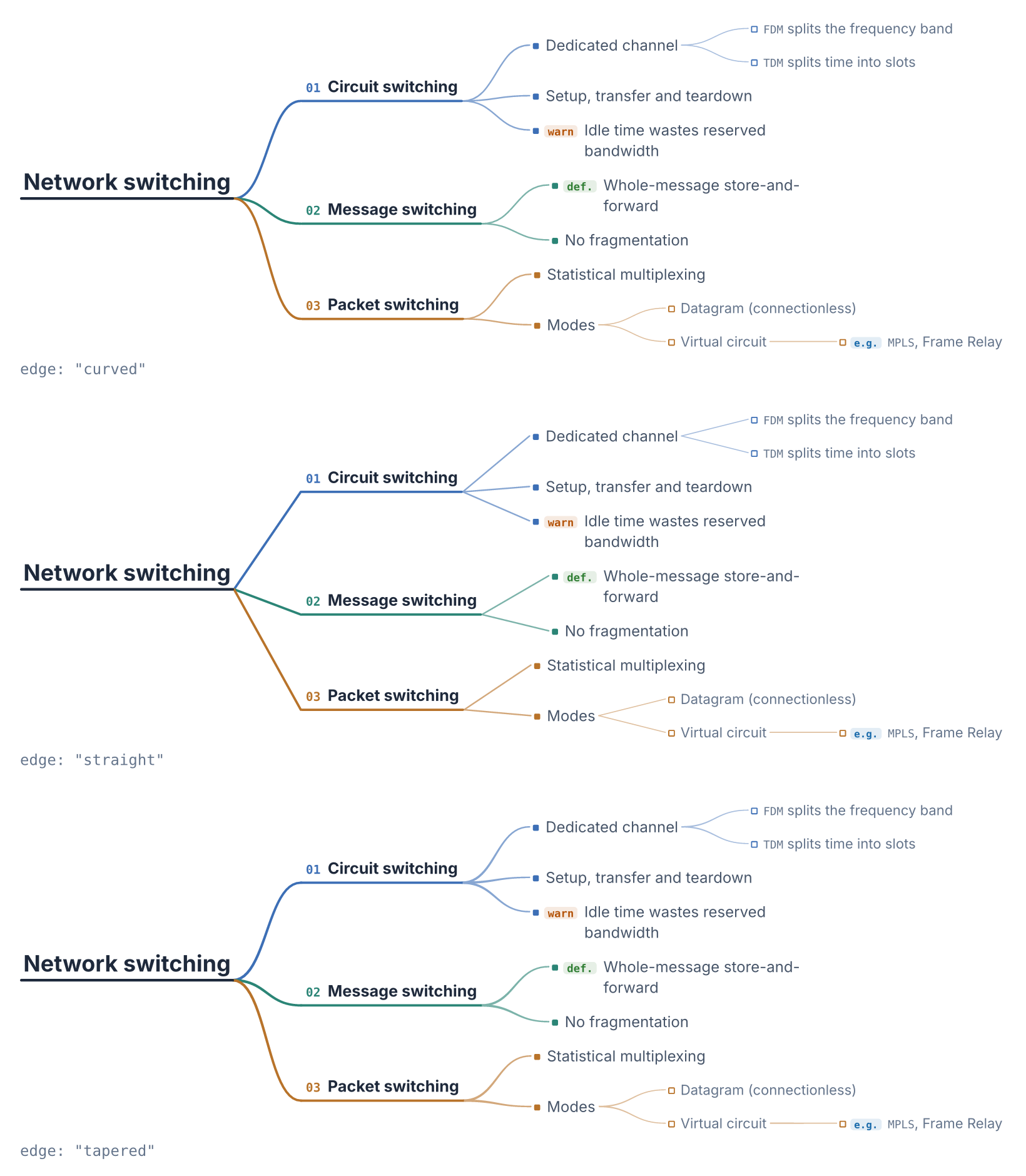

edge picks how a parent reaches its children: "curved" (the default), "straight", or "tapered", a filled ribbon that thins from the parent to the child. Any edge goes with any style. Below the first level, edges are drawn lighter in every style but "boxed".

#mindmap(switching, style: "technical", edge: "curved", markers: "role")
#mindmap(switching, style: "technical", edge: "straight", markers: "role")
#mindmap(switching, style: "technical", edge: "tapered", markers: "role")

Direction and columns

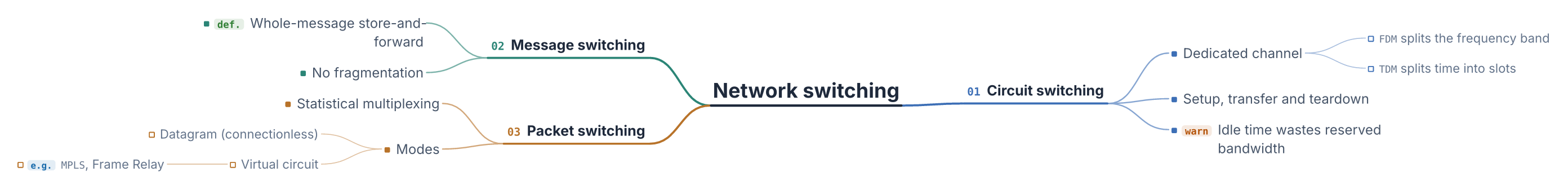

direction: "left" grows the map to the left; direction: "both" sends the first branches to the right and the rest to the left, split so both sides carry about the same height. A label on the left side is right-aligned, so it ends where its edge arrives. align-levels: true starts every depth at one column per side instead of right after its parent (see the technical example above).

#mindmap(switching, style: "technical", direction: "both", markers: "role")

Surface

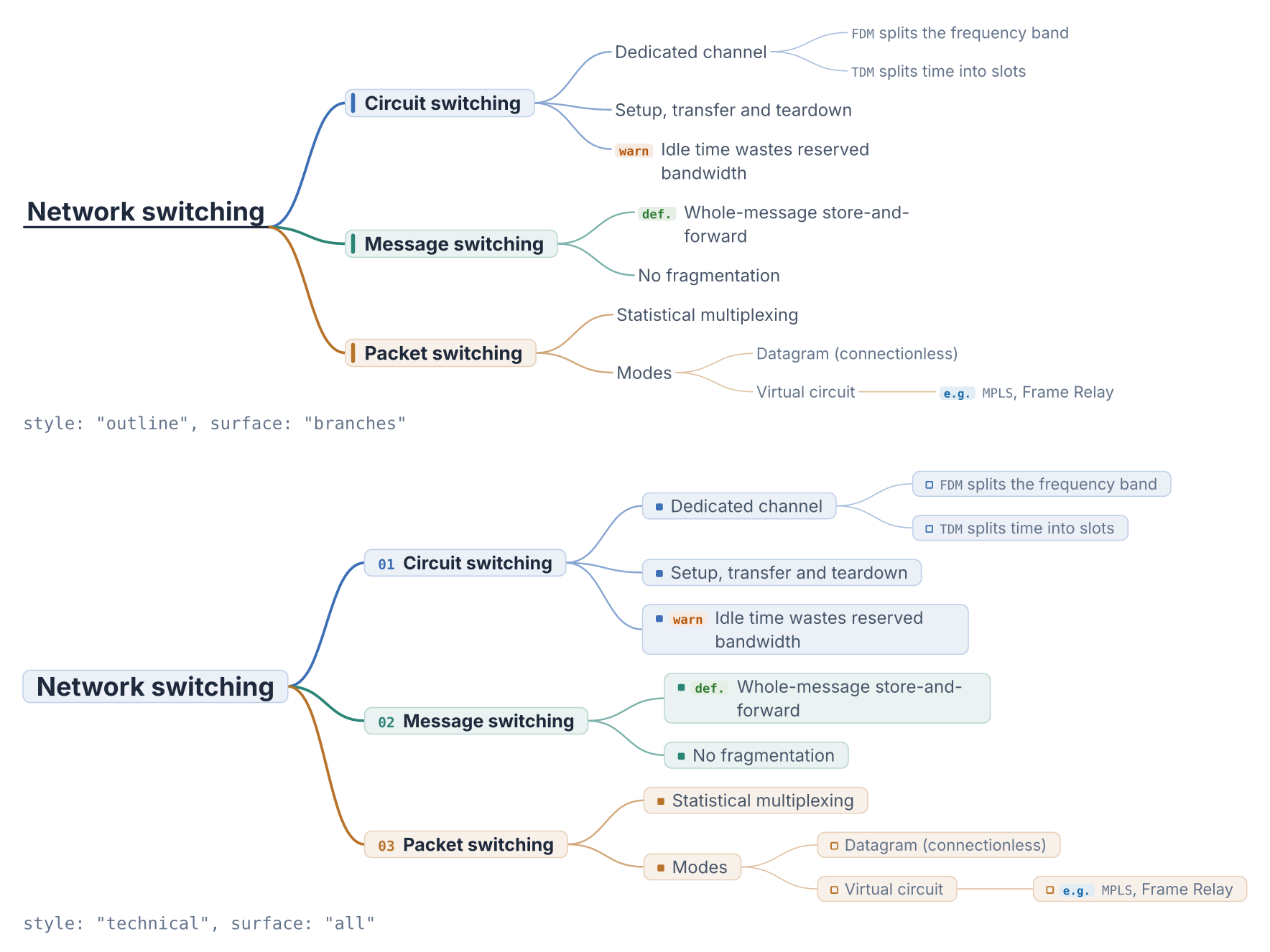

surface: "branches" puts the first-level branches on tinted cards in their color; surface: "all" does the same for every node.

#mindmap(switching, style: "outline", surface: "branches", markers: "role")
#mindmap(switching, style: "technical", surface: "all", markers: "role")

Role markers

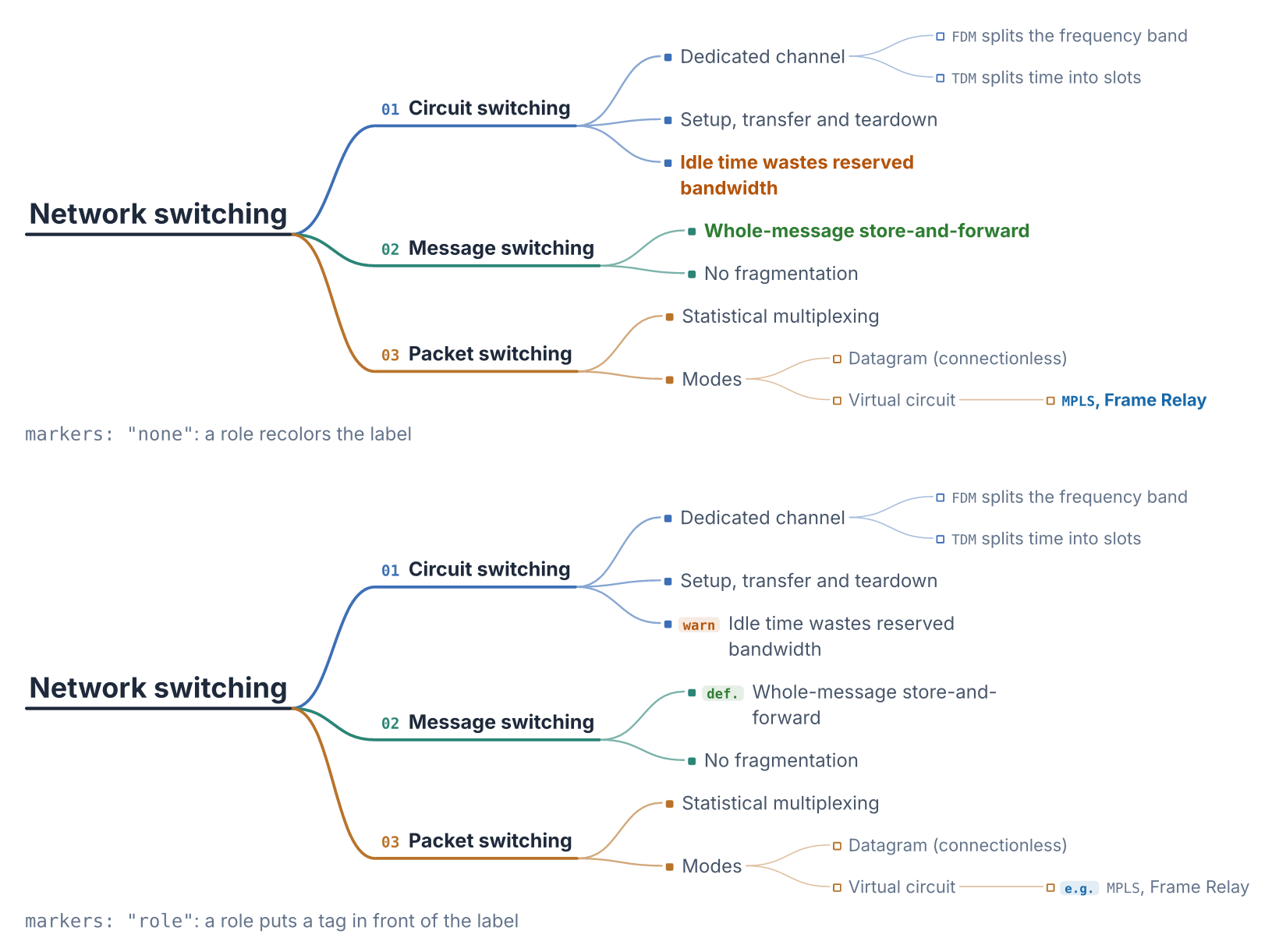

By default a node’s emphasis recolors its label (see “Roles and branch colors” below). markers: "role" keeps the label in the normal ink and puts a short tag in front of it instead, in mono-font. emphasis-labels changes the tag text, e.g. emphasis-labels: (warning: "watch out"); a partial dictionary merges over the defaults (key, warn, def., e.g.).

#mindmap(switching, style: "technical")
#mindmap(switching, style: "technical", markers: "role")

Markup and emoji

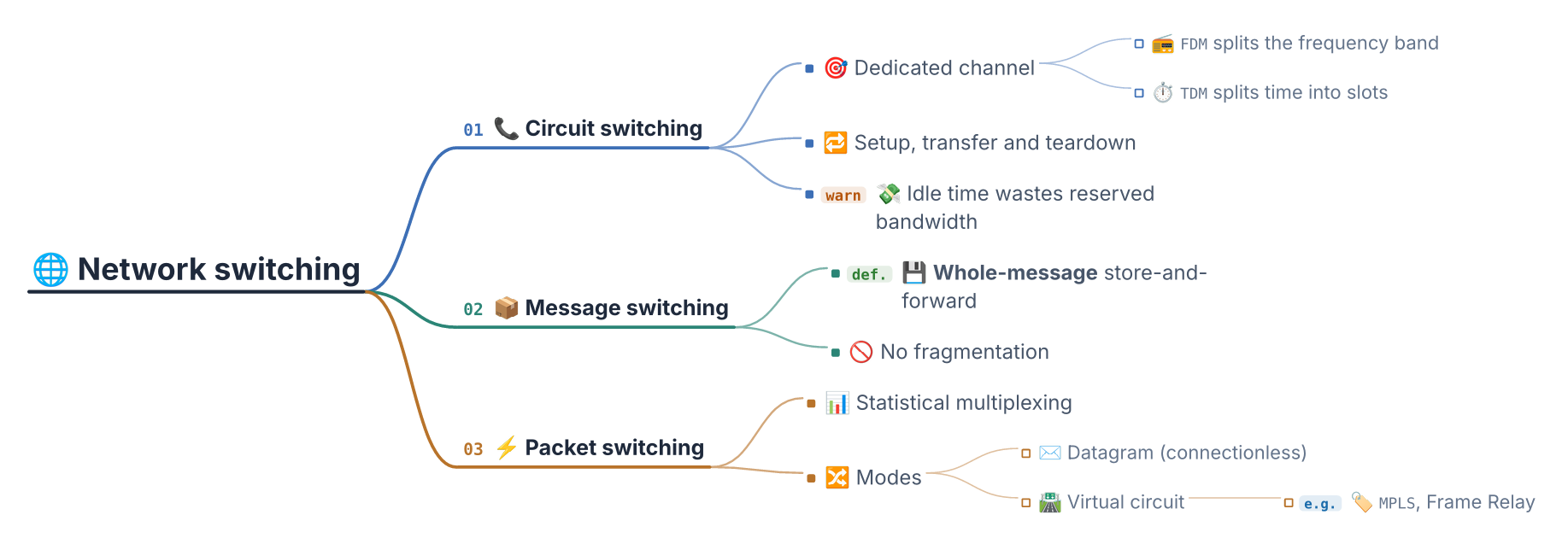

Labels take any Typst content: *strong*, `raw`, math, links. Emoji work too, as long as a color emoji font is in the font fallback list. This is the map at the top of the page:

#let switching = node([🌐 Network switching],
  node([📞 Circuit switching],
    node([🎯 Dedicated channel],
      node([📻 `FDM` splits the frequency band]),
      node([⏱️ `TDM` splits time into slots]),
    ),
    node([🔁 Setup, transfer and teardown]),
    node([💸 Idle time wastes reserved bandwidth], emphasis: "warning"),
  ),
  node([📦 Message switching],
    node([💾 *Whole-message* store-and-forward], emphasis: "definition"),
    node([🚫 No fragmentation]),
  ),
  node([⚡ Packet switching],
    node([📊 Statistical multiplexing]),
    node([🔀 Modes],
      node([✉️ Datagram (connectionless)]),
      node([🛣️ Virtual circuit], node([🏷️ `MPLS`, Frame Relay], emphasis: "example")),
    ),
  ),
)

#mindmap(switching, style: "technical", markers: "role",
  font: ("Inter", "Noto Color Emoji"))

Labels inside justified text

A label ignores the document’s justification (par(justify: true)) and hyphenation: a wrapped label breaks between words and keeps its normal spacing.

#set text(lang: "en", hyphenate: true)
#set par(justify: true)

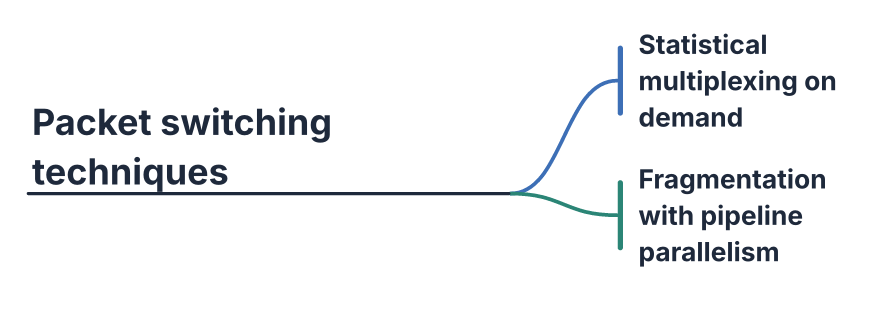

#let long = node([Packet switching techniques],
  node([Statistical multiplexing on demand]),
  node([Fragmentation with pipeline parallelism]),
)
#mindmap(long, style: "outline", node-max-width: 3.2cm)

Roles and branch colors

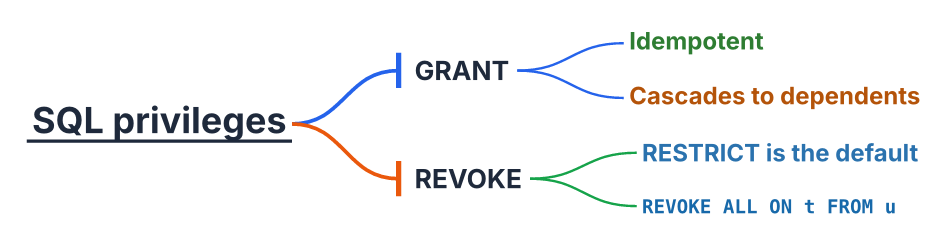

A node can carry an emphasis (its role) and a branch index that overrides the color it would inherit from its position. The override covers the node’s whole subtree (edges, rules, numbers, markers, cards), unless a descendant sets its own branch. The root belongs to no branch, so a branch on the root changes nothing. Both are given by name: the document says what a node means, and the package resolves the color.

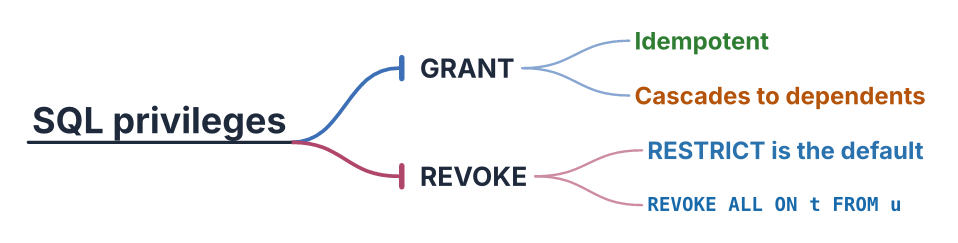

#mindmap(
  node([SQL privileges],
    node([GRANT],
      node([Idempotent], emphasis: "definition"),
      node([Cascades to dependents], emphasis: "warning"),
    ),
    node([REVOKE], branch: 5,
      node([RESTRICT is the default], emphasis: "highlight"),
      node([`REVOKE ALL ON t FROM u`], emphasis: "example"),
    ),
  ),
  style: "outline",
)

Palette

palette gives one color per first-level branch, cycled. The default, “Slate”, is six muted colors, each with at least 3.8:1 contrast on white, so a branch color holds up as a thin rule and as text: #3d6fb6 blue, #2b8576 teal, #b8732a amber, #7d5aa6 violet, #b0466a rose, #5a7a2c olive.

#mindmap(switching, palette: (rgb("#1f4e79"), rgb("#1d6b5f"), rgb("#94570f")))

Options

How it works

The layout is a tidy tree by subtree extent: every subtree reserves a vertical band equal to the sum of its children’s bands (or its own height, if a leaf), and the parent is centered within that band. Because sibling subtrees occupy disjoint bands, nodes never overlap, at any depth. It runs in O(n), in two passes: one up the tree to size the bands, one down to place the nodes.

Node sizes come from Typst’s measure, so a band accounts for the real rendered size of each (possibly wrapped) label. Measuring and drawing go through a single description of the node body (src/style.typ), which is what keeps an edge landing exactly on the node it points at.

Examples

Every file under examples/ compiles on its own. Files named visual_* produce the images above; files named _assert_* exercise the logic through #assert, so compiling them is the test suite.

FONT_PATH=/path/to/fonts sh examples/render.sh    # runs the asserts, then regenerates img/

FONT_PATH must hold Inter and Noto Color Emoji (DejaVu Sans Mono, the default mono-font, ships inside Typst), unless they are installed system-wide. A missing font makes Typst warn, and any warning fails the run.

Changelog

0.3.0 — adds the technical, bar and block styles, edge, direction, align-levels, surface, markers, emphasis-labels, mono-font and root-max-width, and a fourth level of styling. Output changes: a label no longer inherits the document’s justification and hyphenation (a label inside a justified document stops splitting words), and in "outline" the first-level rule becomes a rounded capsule and the edges below the first level are drawn lighter. The default palette changed from the saturated 0.1/0.2 colors to “Slate”, a muted set with at least 3.8:1 contrast on white; pass palette: (rgb("#2563eb"), rgb("#16a34a"), rgb("#dc2626"), rgb("#9333ea"), rgb("#ea580c"), rgb("#0891b2")) to keep the old look. Also in "outline", the root’s edges leave from its rule, labels at depth 3 and deeper are 92% size in the faint ink, edges at depth 2 and deeper land on the label’s first line, and the branch inset grew to 8pt. A label on the left side (direction: "left" or "both") is right-aligned, so a wrapped label ends where its edge arrives, and a label no longer inherits the document’s alignment. A root longer than node-max-width now wraps at up to twice that width (root-max-width: auto); pass root-max-width equal to node-max-width (e.g. 6cm) for the old layout. Nodes now sit exactly at their layout position (a sub-point shift) and edges have round caps. An explicit branch now colors the node’s whole subtree, not just the node (its children used to fall back to their position’s color). Apart from the palette, style: "boxed" renders what 0.2.0 rendered.

0.2.0 — adds style: "outline", the branch and emphasis attributes on node, and the ink / emphasis-colors options. The default output is unchanged: style: "boxed" renders exactly what 0.1.1 rendered.

0.1.1 — long labels wrap instead of overflowing their measured width.

Sponsor

tidymind is developed with support from Elitus (@souelitus on Instagram).
