A Yanshan University slide theme for Touying and Typst. Version 0.2.0 follows the layout of a doctoral defense deck: a navy palette, a breadcrumb headline that carries the slide’s conclusion, chapter openers, a footer chapter navigation, and a component library for problem–method–conclusion pages. Speaker notes can be compiled into separate notes pages for presenter tools.

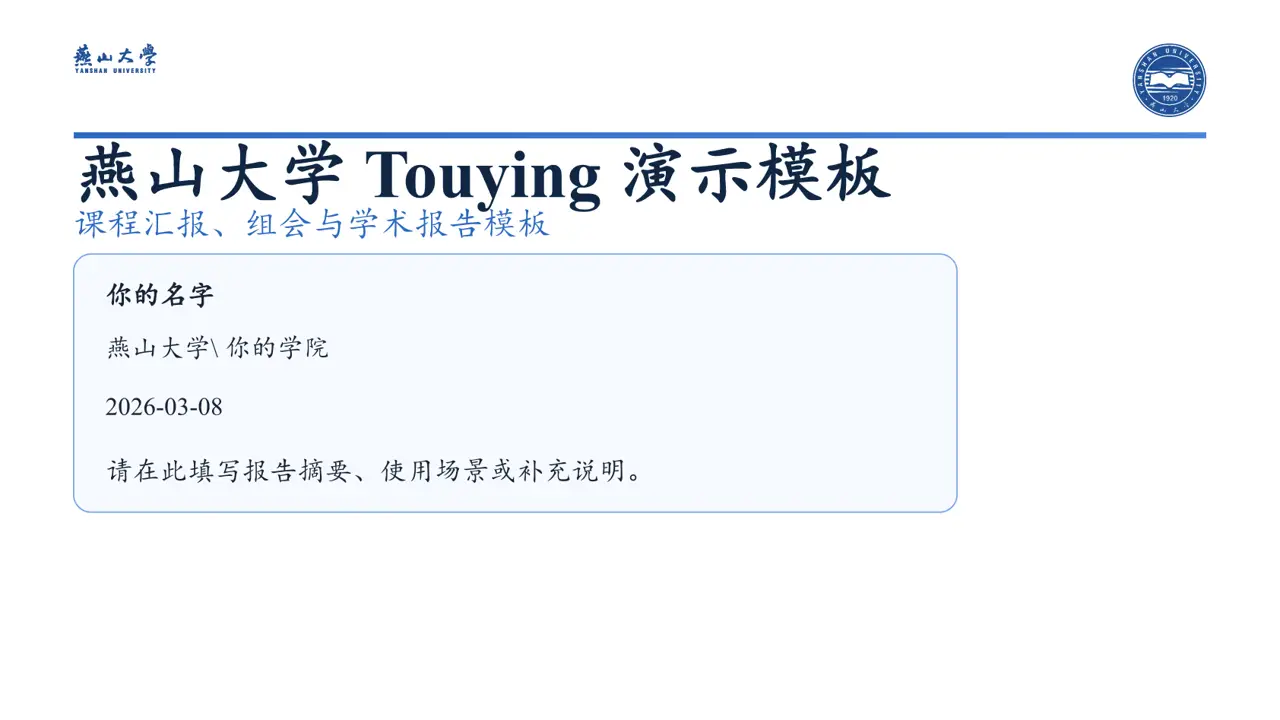

| Cover | Chapter opener | Content slide |
|---|---|---|
![]() |
![]() |
![]() |
Requirements
- Typst
0.15.0or later @preview/touying:0.8.0(imported by the package)
Quick start
typst init @preview/simply-ysu-touying:0.2.0 my-slides
cd my-slides
typst compile main.typ
A minimal deck:
#import "@preview/simply-ysu-touying:0.2.0": *
#show: ysu-theme.with(
aspect-ratio: "16-9", // or "4-3"
nav-labels: ("Background", "Method", "Summary"),
config-info(
title: [Presentation Title],
author: [Your Name],
supervisor: [Supervisor],
subject: [Discipline],
school: [School],
date: datetime.today(),
stage: [学术汇报],
stage-en: [Academic Presentation],
),
)
#title-slide()
#outline-slide()
= Background
#chapter-opener(question: [What is the core question of this chapter?], keywords: ([one], [two]))
== 1.1 Motivation
#sub[1.1.1 Optional subsection]
#takeaway[One sentence with the conclusion of this slide; it becomes the headline]
Slide content.
#ending-slide()
To work from a cloned repository, import the theme file instead:
#import "@preview/touying:0.8.0": *
#import "themes/ysu-beamer.typ": *
The bundled demo shows every component:
typst compile --root . examples/beamer-ysu.typ
typst compile --root . --input ratio=4-3 examples/beamer-ysu.typ # 4:3 pages
Structure pages
| Call | Page |
|---|---|
title-slide(research-line: ((no:, icon:, label:), ...), note:) |
Cover: white left column with the title, navy right column with the stage tab and research lines |
outline-slide(title:, groups: ((from:, to:, tags:, icons:),), note:) |
Contents: one row per level-1 heading; groups highlights consecutive core chapters |
= Chapter + chapter-opener(question:, keywords:, icon:, outline:, bridge:) |
Chapter opener: number, title, question, keywords, the chapter’s level-2 headings, and a bridge line |
== Slide title |
Content slide; the breadcrumb shows the chapter, the level-2 title and sub |
sub[...] / takeaway[...] |
Breadcrumb subsection / headline sentence of the current slide |

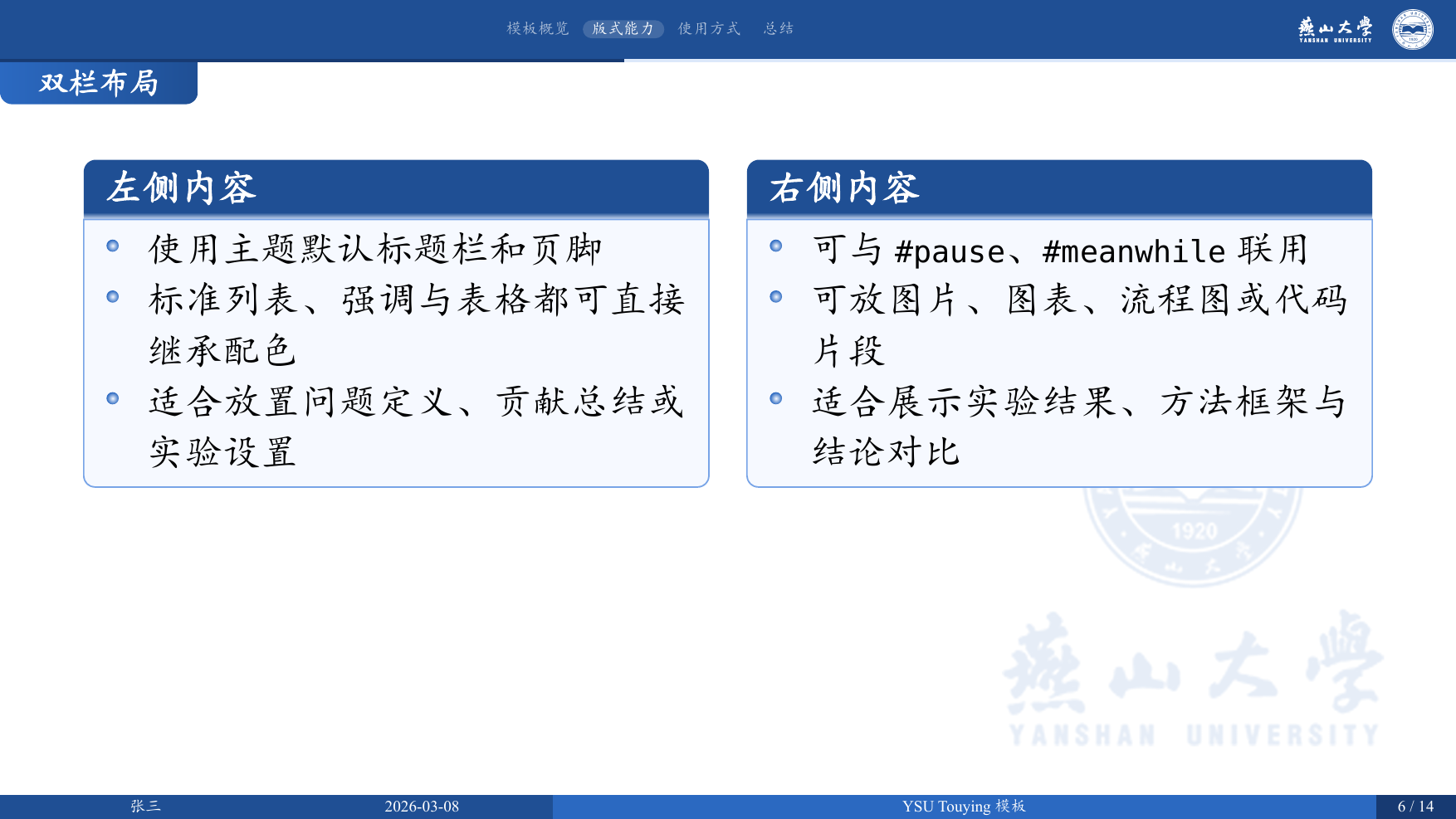

slide(composer: (1fr, 1fr))[...][...] |
Free slide with Touying columns; #pause works |
ending-slide(title:, kicker:, recap: ((title:, chapter:, icon:, body:, tags:), ...), note:) |
Closing page; with recap it shows contribution cards |
ysu-theme parameters: aspect-ratio ("16-9" or "4-3"), align (vertical alignment of slide bodies), nav-labels and nav-full-labels (footer and opener chapter labels; default: the level-1 headings), font: (latin:, cjk:), notes (notes pages, see below).
Components
| Component | Use |
|---|---|
hl[...], key[...] |
Bold navy term; bold red key result |
tag, pill, tab-pill, edge-label, icon-disc |
Labels, capsules and icon discs |
conclude(label:, red-label:, pill:), base-bar, section-bar |
Full-width conclusion bars and section heads |
title-box(title:, icon:, aside:), tblock(title:) |
Card with a navy head (tblock is kept as an alias) |
group-box(label:, red:), sub-box, dash-box, label-row |
Grouped points, e.g. problems and methods |
block-arrow[...] |
Block arrow with a label between groups |
red-frame(label:, center:) |
Red-framed purpose or constraint line |
card, side-card, paper-box, points |
Cards, labelled side cards, paper list, numbered points |
kpi(label:, value:, basis:, key:) |
Key number with a navy top rule |
figure-box(caption:), fig-caption, eq-block(number:, note:), eq-number |
Figures and equations in thesis style |
reading-card(title:), screen-frame(title:) |
Reading card; night window for field screenshots |
result-table(header:, rows:, mark:) |
Results table with a navy header and marked rows |
Colors and gradients (ysu-navy, ysu-red, ysu-tint, grad-key, …), seal(), wordmark() and logo() are exported as well.
Speaker notes
Write #note[...] anywhere in a slide; several notes on one slide join as paragraphs. The cover, contents and closing page take a note: argument; a chapter opener’s note goes right after = Chapter.
#show: ysu-theme.with(
notes: sys.inputs.at("notes", default: "off") == "on",
config-info(
title: [Presentation Title],
author: [Your Name],
),
)
#title-slide(note: [Good morning, my topic is …])
== 1.1 Motivation
#note[First paragraph of the script.
Second paragraph.]
typst compile --root . slides.typ # projector version
typst compile --root . --input notes=on slides.typ notes.pdf # one notes page after each slide
Notes pages are as wide as the slide (16 cm × 13.5 cm for 16:9), dark, 18 pt. PDF page labels are N for slides and notes:N for notes pages, which FerroStage and pympress use to pair them; examples/check-page-labels.py notes.pdf --expect-notes checks them. Notes also go to pdfpc. Export the script as JSON with typst query --root . slides.typ "<ysu-note>" --field value. Pages split with #pause get their notes page after the last subpage only.
Fonts
Slides use sans-serif. CJK fallback: Source Han Sans → Noto Sans SC → Microsoft YaHei. Latin and digits: Arial. Change it with font: (latin: (...), cjk: (...)). If Source Sans 3 is installed, put it first in latin.
Migrating from 0.1.x
0.2.0 is a breaking release.
- Removed
ysu-themeparameters:progress-bar,watermark,footer-columns,footer-a…footer-d. The footer now shows author · stage, the chapter navigation (nav-labels) and the page number. - Pages are 16 cm × 9 cm (12 cm × 9 cm for 4:3) instead of
presentation-16-9; the default body alignment ishorizon. config-infogainssupervisor,subject,school,stageandstage-en; the cover uses them, andinstitution,subtitleandshort-titleare no longer shown.title-slide(extra:)is replaced byresearch-line:;ending-slidetakestitle:,kicker:andrecap:instead of a body-only page.- New page markers
sub[...]andtakeaway[...], newchapter-opener(...), and the component library above;tblockremains as an alias oftitle-box. - The palette changes from YSU blue (
#2B69C1) to navy#1F296Awith red#B42318accents; fonts change from KaiTi / Times New Roman to Source Han Sans / Arial. @preview/cutiis no longer used: the theme relies on real bold weights instead of fake bold.
Included files
lib.typ: package entrypointthemes/ysu-beamer.typ: theme, structure pages and notesthemes/components.typ: component librarythemes/tokens.typ: colors, gradients, fonts and logosthemes/assets/: YSU visual assetstemplate/main.typ: template used bytypst init
Licensing and Assets
- Theme and library source files are released under the MIT License.
LICENSEpreserves both the upstream QuadnucYard notice and the current Geekyhang notice because this repository adapts upstream work while shipping new YSU-specific source files under the same MIT terms.- The starter content in
template/main.typis additionally available under MIT No Attribution; seeLICENSE-MIT-0.txt. - University-branded assets in
themes/assets/ysu-*are not covered by the SPDX license expression intypst.toml; see ASSETS.md for the file inventory, source links, transformation notes, and reviewer guidance.
License
Licensed under the MIT License.
