Bilingual (German/English) Beschreibungsbogen (Information Document) for ECE/UN Regulation No. 10 EMC type approval of electric/electronic sub-assemblies (EUB/ESA).
The layout and field numbering follow the official RTF template published by the Kraftfahrt-Bundesamt (KBA) for UN-R 10 submissions.

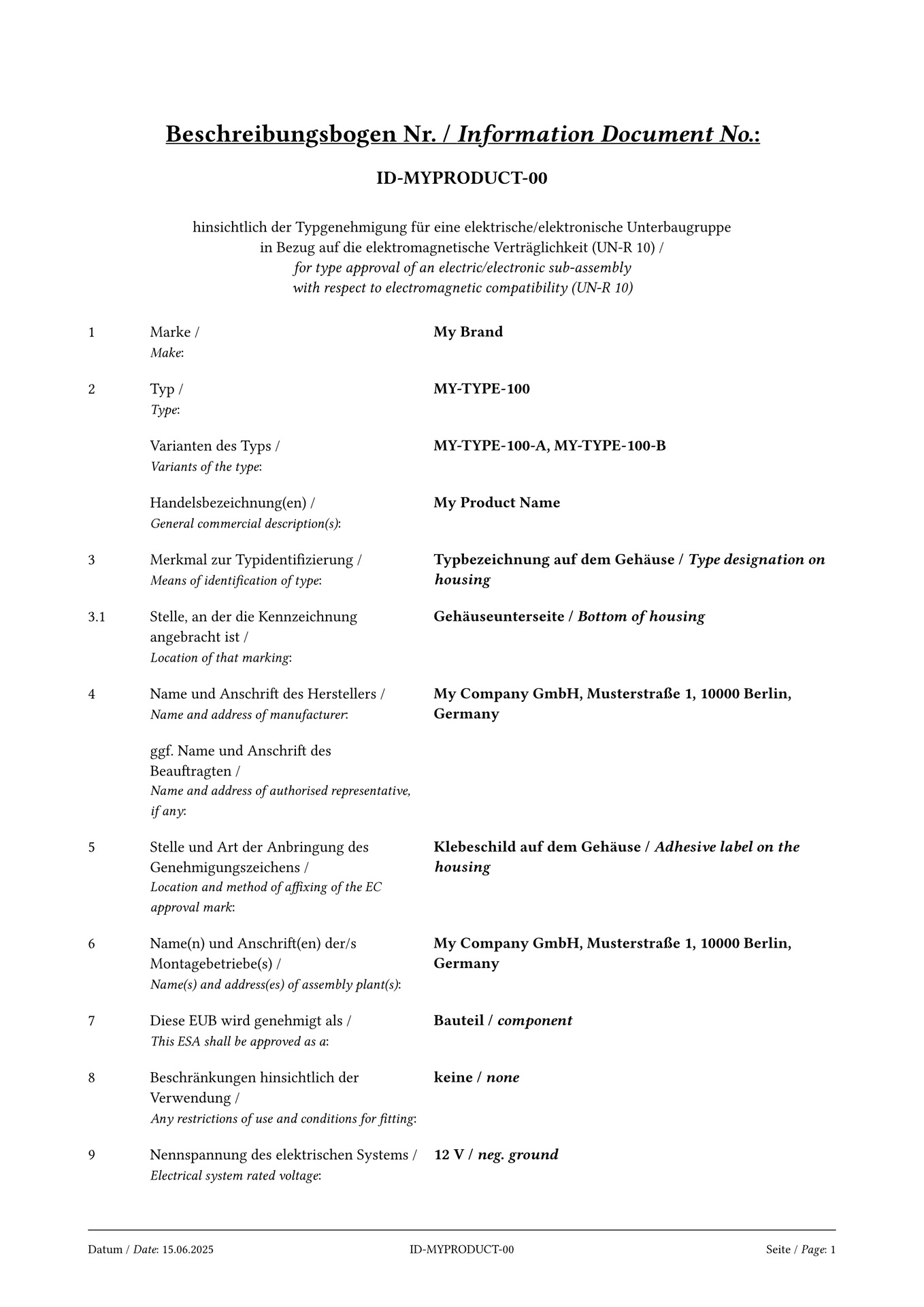

Preview
Usage
#import "@preview/infodoc-unr10:0.1.0": kba-document
#show: kba-document.with(
date: "15.06.2025",
doc-number: "ID-MYPRODUCT-00",
marke: "My Brand",
typ: "MY-TYPE-100",
varianten: ("MY-TYPE-100-A", "MY-TYPE-100-B"),
handelsbezeichnung: "My Product Name",
ident-merkmal: ("Typbezeichnung auf dem Gehäuse", "Type designation on housing"),
ident-stelle: ("Gehäuseunterseite", "Bottom of housing"),
hersteller-name-anschrift: "My Company GmbH, Street 1, 10000 City, Germany",
genehmigung-stelle-art: ("Klebeschild auf dem Gehäuse", "Adhesive label on the housing"),
montagebetriebe: ("My Company GmbH, Street 1, 10000 City, Germany",),
nennspannung: ("12 V", "neg. ground"),
anlagen: (
(nr: "1", inhalt: "Functional Description", doc-nr: "FUN-100-1.0",
datum: "15.06.2025", rev: "15.06.2025", seiten: "3"),
),
)
Parameters
Required
| Parameter | Type | Description |
|---|---|---|
date |
string | Document date. Use current date even for amendments. |
doc-number |
string | Document number. Keep unchanged for amendments. |
marke |
string | Brand / Make (item 1) |
typ |
string | CRITICAL: Type designation (item 2) — must be character-for-character identical across the application, test report, and this document. Keep it simple to avoid errors. |
varianten |
array | All approved variants. List completely, even for amendments. |
handelsbezeichnung |
string | General commercial description(s) |
ident-merkmal |
string or 2-tuple | Means of type identification (item 3) |
ident-stelle |
string or 2-tuple | Location of marking (item 3.1) |
hersteller-name-anschrift |
string | Full name and address of manufacturer (item 4) |
genehmigung-stelle-art |
string or 2-tuple | Location and method of affixing the approval mark (item 5) |
montagebetriebe |
array | Assembly plant(s) — entity performing the last approval-relevant manufacturing step (item 6) |
nennspannung |
string or 2-tuple | Rated voltage (item 9). Nominal value only, not a range. |
anlagen |
array of records | Annex table — see below |
Optional
| Parameter | Type | Default | Description |
|---|---|---|---|
beauftragter |
string | "" |
Authorised representative (item 4). Leave empty if none. |
genehmigt-als |
2-tuple | ("Bauteil", "component") |
Approval category (item 7). Use ("Selbstständige technische Einheit", "separate technical unit") for STEs. |
beschraenkungen |
2-tuple | ("keine", "none") |
Restrictions on use (item 8). For components typically ("keine", "none"); for STEs list applicable vehicle types. |
is-charging-system |
bool | false |
Set to true only for REESS charging systems — enables items 10–15. |
Bilingual values
Parameters that accept a 2-tuple render as German / *italic English*:
ident-stelle: ("Auf dem Gehäuse", "On the housing")
// renders as: Auf dem Gehäuse / On the housing
Annex table (anlagen)
Each entry is a dictionary with the following keys:
| Key | Description |
|---|---|
nr |
Annex number |
inhalt |
Content description |
doc-nr |
Document / drawing number |
datum |
Date of issue |
rev |
Last change date |
seiten |
Number of pages |
anlagen: (
(
nr: "1",
inhalt: "Functional Description",
doc-nr: "FUN-MYPRODUCT-1.0",
datum: "15.06.2025",
rev: "15.06.2025",
seiten: "3",
),
)
Charging system parameters (items 10–15)
Enabled when is-charging-system: true. Only applicable for REESS charging systems.
| Parameter | Description |
|---|---|
ladegeraet |
Charger type |
ladestrom |
Charging current type (AC/DC) |
phasen |
Number of phases (AC only) |
frequenz |
Frequency (AC only) |
max-nennstrom |
Maximum nominal current |
nenn-ladespannung |
Nominal charging voltage |
schnittstellen |
Basic ESA interface functions |
rsce-wert |
Minimum Rsce value |
Notes on correct completion
Type designation is the most important identifier. It must appear character-for-character identically in the application form, the test report, and this document. Keep it simple to avoid transcription errors.
Variants are configurations sharing the same function and basic arrangement. The distinction must be apparent (use a variant key). Always list all variants in full, including for amendments.
Amendments require a new date but the same document number. Always describe the complete type with all variants.
Annexes must cover: functional description, drawings, schematics, assembly plans, and BOM. Identify documents by their document number, not by filename. Do not submit lists as Excel files.
Submission format: deliver the complete document as a single PDF without write protection to the Technical Service.
License
MIT-0 — free to use, modify, and distribute without attribution.
