Universe

Create project in app

Overview

An unofficial Typst presentation template following TU Berlin’s corporate design, built on Touying 0.6.1 — a modern presentation framework for Typst with support for animations, multi-column layouts, and structured slide types.

Features

  • Official TU Berlin colors (Red #c50e1f, Gray #717171)
  • Slide types: title, content, section, outline, ending
  • Two-column and multi-column layouts via composer
  • Slide animations with #pause and #meanwhile
  • Header with slide title and logo, 3-column footer with author/title/date+page
  • Optional progress bar in footer
  • Content helpers: alert-box, highlight-box, emphasis, tub-block, quote-block
  • Academic helpers: tub-theorem, tub-definition, tub-example
  • Footnote-style citations with slide-cite and bottom-aligned references with slide-ref
  • Speaker notes via Touying’s built-in speaker-note

Quick Start

#import "@preview/touying:0.6.1": *
#import "@preview/clear-tub:0.2.0": *

#show: tub-theme.with(
  aspect-ratio: "16-9",
  department: [Department of Computer Science],
  logo: image("assets/logos/tu_berlin.svg"),
  progress-bar: true,
  config-info(
    title: [My Presentation Title],
    subtitle: [Optional Subtitle],
    author: [Author Name],
    date: datetime.today(),
    institution: [Technische Universität Berlin],
  ),
)

#title-slide()

#outline-slide()

= Section Heading        // auto-generates a section slide

== Slide Title            // auto-generates a content slide
- First point
- Second point

#pause                    // animation: reveals next content on click

- Third point (appears after pause)

Installation

Option 1: Typst Universe

#import "@preview/touying:0.6.1": *
#import "@preview/clear-tub:0.2.0": *

Option 2: Local Development

git clone https://github.com/EzraCerpac/tub-typst-presentation
cd tub-typst-presentation
typst watch main.typ

Slide Types

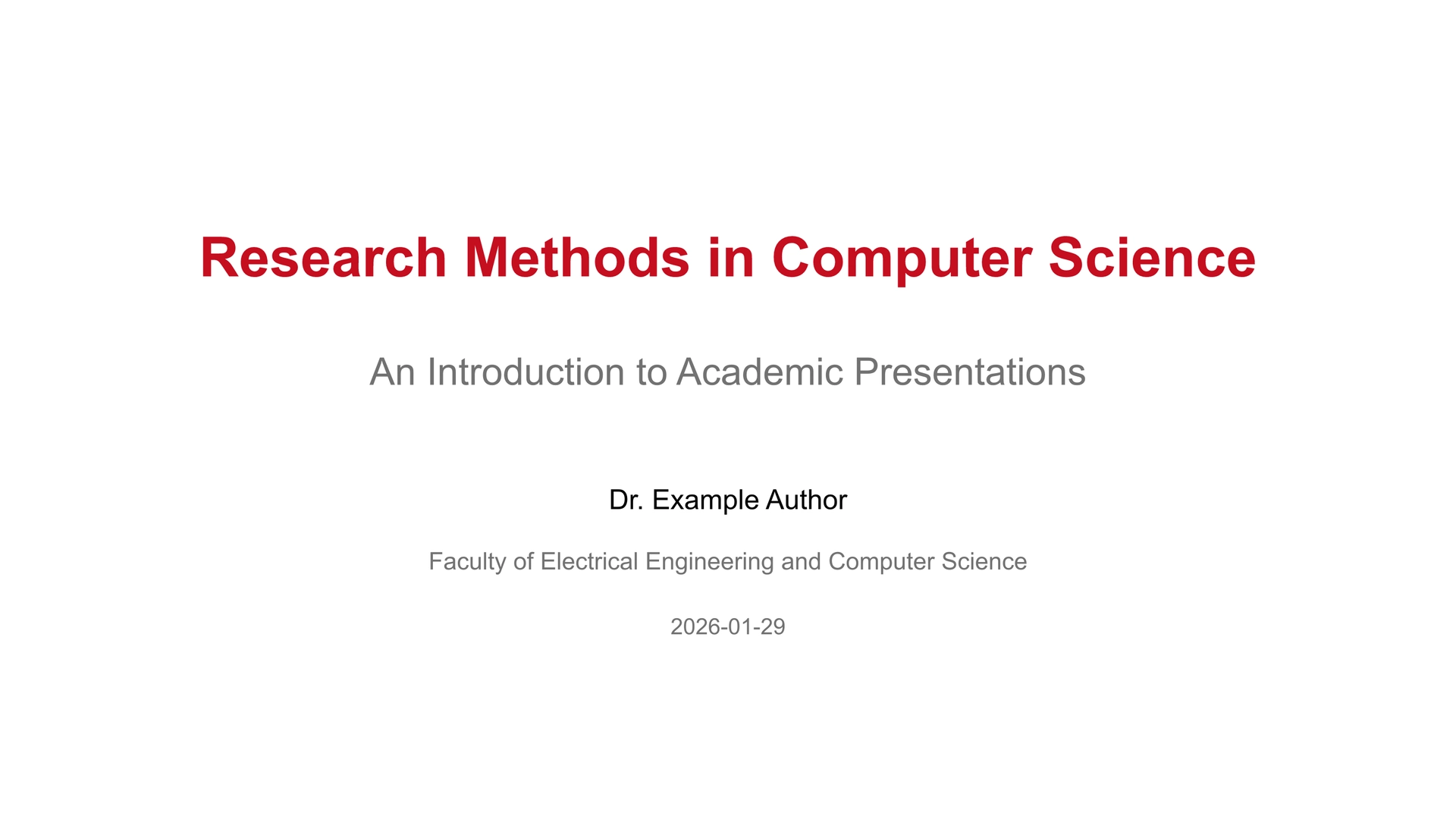

Title Slide

#title-slide()

Centered layout with logo, title, subtitle, author, department, and date. No header/footer. Metadata is pulled from config-info(...).

Content Slide (default)

Content slides are created automatically from == Heading markup, or explicitly:

#slide[
  Content goes here.
]

Each content slide has a header bar (title + logo) and a 3-column footer.

Section Slide

Auto-generated when using = Heading (level-1 heading). Displays the section name centered in TU Berlin red. No header/footer.

Outline Slide

#outline-slide()

Displays a table-of-contents style outline of all sections. The current section is highlighted while others are dimmed (progressive outline). No header/footer.

Ending Slide

#ending-slide(title: [Thank You!])[
  Author Name \
  author@tu-berlin.de
]

A centered closing slide with the title rendered in a red rounded block and body content below. No header/footer. Use for “Thank you”, “Questions?”, or contact information.

Progress Bar

A thin red progress bar appears below the footer, showing how far through the presentation you are. It is enabled by default and can be toggled:

#show: tub-theme.with(
  progress-bar: true,   // default: true
  // ...
)

Set progress-bar: false to disable it.

Multi-Column Layout

Use the composer parameter to create column layouts:

#slide(composer: (1fr, 1fr))[
  Left column content
][
  Right column content
]

For unequal columns:

#slide(composer: (2fr, 1fr))[
  Wider left column
][
  Narrower right column
]

Animations

Touying supports sub-slide animations:

== Animated Slide
First point is always visible.

#pause

This appears on the second sub-slide.

#pause

This appears on the third sub-slide.

Use #meanwhile to show content on all sub-slides simultaneously in a different area.

Content Helpers

Alert Box

#alert-box[Important information with red left border.]

Highlight Box

#highlight-box[Key takeaway in bold red text with gray background.]

Emphasis

#emphasis[Bold red inline text.]

TUB Block

A styled block with a colored header bar and light body area:

#tub-block(title: [Key Insight])[
  Content of the block goes here.
]

Pre-titled wrappers for academic content:

#tub-theorem[
  For any convex function $f$, a local minimum is also a global minimum.
]

#tub-definition[
  A function $f$ is *convex* if ...
]

#tub-example[
  The function $f(x) = x^2$ is convex on $RR$.
]

Quote Block

A styled blockquote with optional attribution:

#quote-block(attribution: [Albert Einstein])[
  Imagination is more important than knowledge.
]

Slide Citation

Footnote-style citation within a slide:

This result#slide-cite[Author, _Title_, Publisher, 2024.] shows that...

Slide Reference

Bottom-aligned reference text:

#slide-ref[Source: Author, _Title_, 2024]

Speaker Notes

Touying 0.6.1 supports speaker notes natively. Add notes to any slide:

== My Slide

Content visible to the audience.

#speaker-note[
  Remind audience about the key takeaway.
  Mention the follow-up study.
]

Speaker notes are hidden during the presentation by default. To display them on a second screen:

#show: tub-theme.with(
  config-common(show-notes-on-second-screen: right),
  // ...
)

Notes are also exported to PDF presenter tools (pdfpc format).

Export to PPTX / HTML

Touying provides an exporter utility for converting presentations to other formats. See the touying-exporter project for details on exporting to PPTX and HTML.

Basic workflow:

  1. Install touying-exporter (requires Node.js)
  2. Run: touying-exporter export main.typ --format pptx
  3. Or for HTML: touying-exporter export main.typ --format html

Refer to the touying-exporter documentation for full options and requirements.

Customization

Theme Parameters

#show: tub-theme.with(
  aspect-ratio: "16-9",       // or "4-3"
  department: [Your Dept],
  logo: image("your-logo.png"),
  progress-bar: true,          // toggle footer progress bar
  footer-a: self => self.info.author,    // left footer
  footer-b: self => self.info.title,     // center footer
  footer-c: self => {                     // right footer
    utils.display-info-date(self)
    h(1fr)
    context utils.slide-counter.display() + " / " + utils.last-slide-number
  },
  config-info(
    title: [...],
    subtitle: [...],
    author: [...],
    date: datetime.today(),
    institution: [...],
  ),
)

Color Override

#show: tub-theme.with(
  config-colors(
    primary: rgb("#00FF00"),       // override accent color
    neutral-darkest: rgb("#222"),  // override text color
  ),
  config-info(title: [My Talk]),
)

Available Colors

Color Hex Usage
TU Berlin Red #c50e1f Primary accent, headings
Gray #717171 Secondary text, subtitles
Black #000000 Body text
White #ffffff Backgrounds, ending slide text
Light Gray #f5f5f5 Header background, highlight boxes

File Structure

clear-tub/
├── lib.typ              # Theme library (Touying-based)
├── main.typ             # Example presentation
├── typst.toml           # Package metadata
├── assets/
│   └── logos/
│       └── tub_logo.png # TU Berlin logo
├── README.md
└── DISCLAIMER.md

Roadmap

Planned features for future releases:

  • Hero slide — full-bleed image background with overlaid text
  • Navigation bar — mini-slides or section dots in the header for at-a-glance navigation

⚠️ Logo Usage & Licensing

IMPORTANT: This package contains TU Berlin’s official logos which are:

  • © Technische Universität Berlin
  • NOT included under the MIT license
  • Subject to TU Berlin’s usage policies

Who Can Use the TU Berlin Logo?

✅ TU Berlin Students & Staff:

  • Academic presentations and theses
  • University-related events
  • Scientific conferences (in academic context)

❌ External Users:

Template Code License

The template code (lib.typ and related Typst files) is licensed under MIT License.

The TU Berlin logos and branding materials are copyrighted by TU Berlin and subject to their institutional policies.

Before using this template, verify you have the right to use TU Berlin’s branding. See:

Disclaimer

This is an unofficial template created by the community. It is not endorsed by or affiliated with TU Berlin. Verify compliance with your department’s requirements before using for official presentations.

For official guidelines, contact:

License

MIT License (applies to template code only)

The template code (Typst files, excluding logos and TU Berlin branding) is released under the MIT License. See the LICENSE file for full details.

TU Berlin Logo and Branding: © Technische Universität Berlin. Use subject to TU Berlin’s institutional policies. See the logo usage section above for details.
