This is an academic template for dissertations and theses, based on the formatting guidelines provided by the Universidade do Estado de Santa Catarina (UDESC). This is not an official project.

All pre-textual elements have been automated, along with a few style conventions. The goal of this template is to simplify the formatting process for academic writing according to institutional norms, allowing you to focus on content rather than layout. If you’d like to help, feel free to send me an email at: lucas [at] bublitz.art.br.

Warnings

  • Typst currently does not allow modification of template code hosted under @preview.
  • If you need to edit internal textual elements generated by the bellbird-paper-udesc function, you must include the .typ file locally in your project.
  • Arial and Times New Roman fonts are not bundled with the Typst compiler by default — not even in the web version.
    • Therefore, they must be added manually.
    • Due to package guidelines, it’s not allowed to include external font files directly in a template.
  • In the Typst web app, local font files are automatically recognized when present in the project.
    • However, if you run Typst locally, the fonts must be installed on your operating system to render correctly (alternatively, it’s possible to specify a path to the font folder using the --font-path flag).
    • On Windows, these fonts are typically pre-installed.

Configuration

The template exports the paper-udesc function with the following named arguments:

Required Arguments

Argument Description Data Type
title Main title of the work. content
subtitle Subtitle of the work. content
author Name of the author. string
advisor A dictionary with name, titulation, and institution (all string). dictionary
committee An array of dictionaries (same format as advisor) for the examination board. array of dictionaries
campus Name of the UDESC center or campus. content
department Name of the academic program or department. content
class Type of work (e.g., Tese, Dissertação, TCC). string
abstract Abstract in Portuguese. content
keywords Array of keywords in Portuguese. array of strings
foreignAbstract Abstract in a second language (usually English). content
foreignKeywords Keywords matching the foreign abstract. array of strings
obverse Text on the reverse of the title page. content
city City of the institution. string
date A dictionary with: day (int), month (string), and year (int). dictionary

Optional Arguments

These arguments are optional. If omitted, the related section is not shown:

Argument Description Data Type
dedication Dedication section. content
acknowledgments Acknowledgments section. content
epigraph Epigraph, including optional source/citation. content
index-card Catalog Sheet (default false). boolean

Pre-textual Elements

The following elements are always generated and required for the institutional manual:

Page Triggered by Arguments Notes

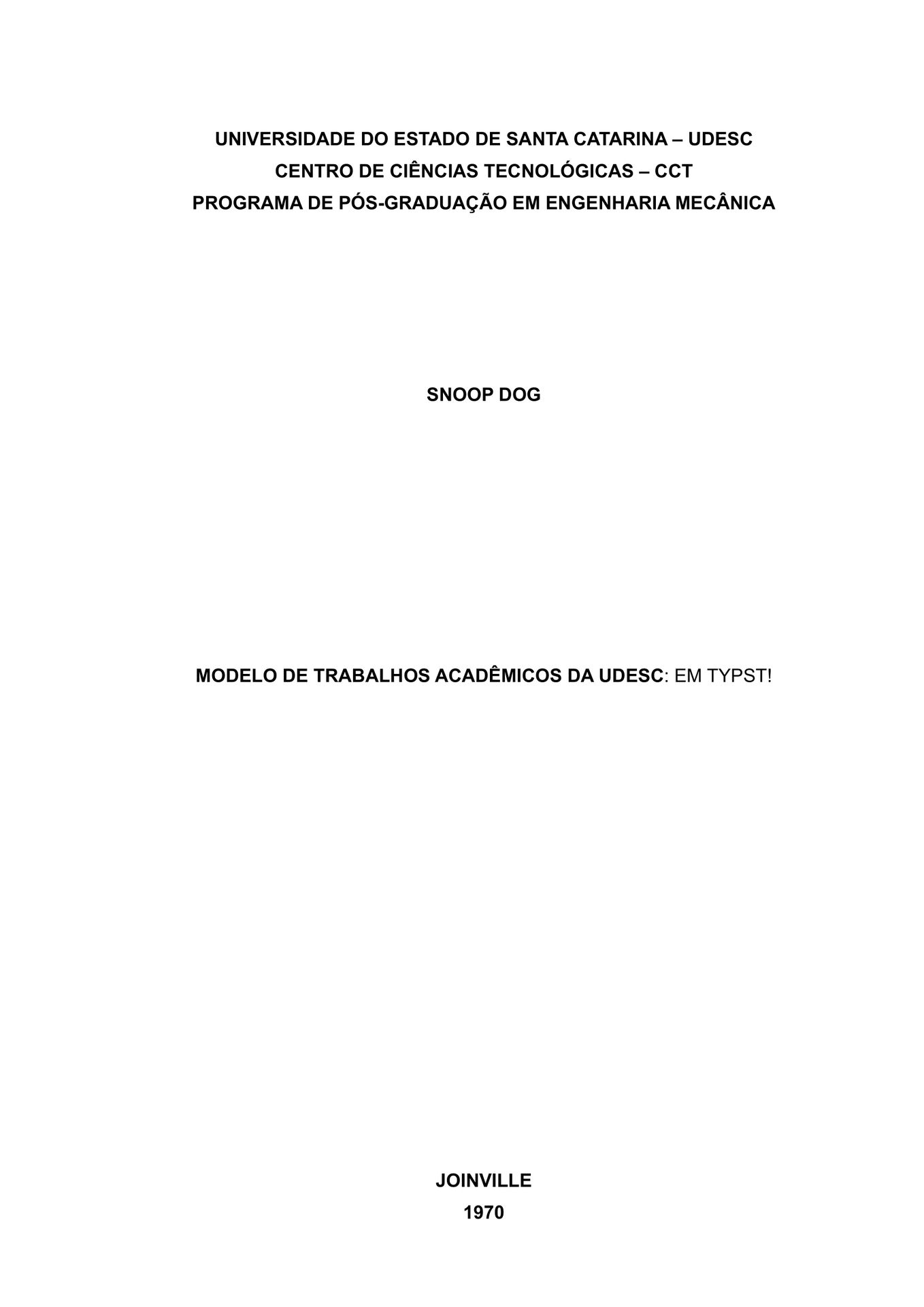

Cover (Capa) title, author, campus, department, class, city, date Shows university info, title, author, and year.
Title Page (Folha de rosto) title, author, obverse, advisor, city, date Includes institutional info and advisor.
Abstract in Portuguese (Resumo) abstract, keywords Shown with header RESUMO and keywords in Portuguese.
Abstract in English (Abstract) foreignAbstract, foreignKeywords Usually English. Shown with header ABSTRACT.
List of Figures (Lista de Figuras) Auto-generated when figure.where(kind: image) is present Uses built-in outline logic.
List of Tables (Lista de Tabelas) Auto-generated when figure.where(kind: table) is present Uses built-in outline logic.
Table of Contents (Sumário) Generated from headings Includes all visible headings using outline.

Optional

The following sections are only rendered if their arguments are provided or flags enabled:

Page Trigger Argument Notes
Catalog Sheet (Ficha catalográfica) index-card: true (default) Generates cataloging block at bottom of page.
Approval Sheet (Folha de aprovação) committee (array of members) Includes advisor and board members.
Dedication (Dedicatória) dedication Rendered as a quiet page, bottom-left aligned.
Acknowledgments (Agradecimentos) acknowledgments Includes centered heading and standard paragraph.
Epigraph (Epígrafe) epigraph Displayed at the bottom-left, similar to dedication.

Style Automations

The paper-udesc Typst template automates some visual and structural formatting aspects, like the followings:

Element Automated Behavior Notes
Paragraphs Justified text with 3em first-line indent and 1em spacing between paragraphs par(justify: true, first-line-indent: 3em, spacing: 1em)
Text Font Uses 12pt, with hyphenation enabled for Portuguese text(font: "Arial", size: 12pt, lang: "pt", hyphenate: true)
Headings – Level 1 Bold, uppercase, starts on a new page (soft break) pagebreak(weak: true), upper(...), text(weight: "bold")
Headings – Level 2 Regular weight, uppercase text(weight: "regular"), upper(...)
Headings – Level 3 Bold, mixed case text(weight: "bold")
Headings – Level 4 Regular weight, enclosed in brackets [_ #that _], text(weight: "regular")
Equations Left-aligned, auto-numbered with vertical spacing math.equation(numbering: "(1)"), linebreak()
Quotes – Short Rendered with quotation marks Uses Typst’s native quote behavior
Quotes – Long If ≥ 243 characters: block quote, 10pt, indented 4cm, tight leading quote with style: text(size: 10pt), pad(left: 4cm)
Figures – Caption Caption shown above figure figure.caption(position: top)
Figures – Source If a citation is present, shows “Fonte: …” (The @ must be placed at the end of the figure content.) show ref: that => [Fonte: #cite(...)]
Figures – Code blocks Raw figures labeled as “Código-fonte” show figure.where(kind: raw): set figure(supplement: [Código-fonte])
Bibliography ABNT style, centered heading, no first-line indent bibliography(..., style: "associacao-brasileira-de-normas-tecnicas.csl")

the template will initialize you with a sample call to the paper-udesc function in a show rule, along with some examples and a starter structure file to organize the text (not yet).

#show: paper-udesc.with(
  // ARGUMENTOS OBRIGATÓRIOS
  campus: [Centro de Ciências Tecnológicas -- CCT],
  department: [Programa de Pós-Graduação em Engenharia Mecânica],
  abstract: lorem(100),
  keywords: ("Primeira", "Segunda", "Terceira"),
  foreignAbstract: lorem(100),
  foreignKeywords: ("First", "Second", "Third"),
  title : [Modelo de Trabalhos Acadêmicos da Udesc],
  subtitle: [em Typst!],
  city: "Joinville",
  date: (
    day: 01,
    month: "janeiro",
    year: 1970
  ),
  author : "Snoop Dog",
  obverse: [Artigo apresentado ao curso de graduação em alguma coisa do campous tal como requisito parcial para obtenção do título de Bacharel naquela coisa.],
  advisor: (
    name: "Manoel Gomes",
    titulation: "Dr.",
    institution: "Universidade do Estado de Santa Catarina"
  ),
  committee: (
    (
      name: "Stephen Timoshenko",
      titulation: "Dr.",
      institution: "Petersburg State Transport University"
    ),
    (
      name: "Willis Carrier",
      titulation: "Dr. h. c.",
      institution: "Cornell University"
    ),
    (
      name: "Leonhard Euler",
      titulation: "Dr.",
      institution: "University of Basel"
    )
  ),
  class: "Dissertação",
  // ARGUMENTOS OPCIONAIS
  // Estes argumentos quando omitidos fazem com que suas respectivas páginas também o sejam.
  dedication: [Aos alunos da Universidade do Estado de Santa Catarina, altissíssimo.],
  acknowledgments : [Eu quero me agradecer por acreditar em mim mesmo, quero me agradecer por todo esse trabalho duro. Quero me agradecer por não tirar folgas. Quero me agradecer por nunca desistir. Quero me agradecer por ser generoso e sempre dar mais do que recebo. Quero me agradecer por tentar sempre fazer mais o certo do que o errado. Quero me agradecer por ser eu mesmo o tempo inteiro.],
  epigraph : [_Somos por essa causa, essa somente,\ perdidos, mas nossa pena é só esta:\ sem esperança, ansiar eternamente._\ \ (A Divina Comédia, Canto IV, 40-42, Dante Alighieri)],
  index-card: true
)

// Aqui começam os elementos textuais!

Sample figures licensing

All example figures included in this project are licensed under the Creative Commons Attribution 3.0 Unported (CC BY 3.0). Credits and source links for each figure are included in the template’s .bib file.
